Item Description

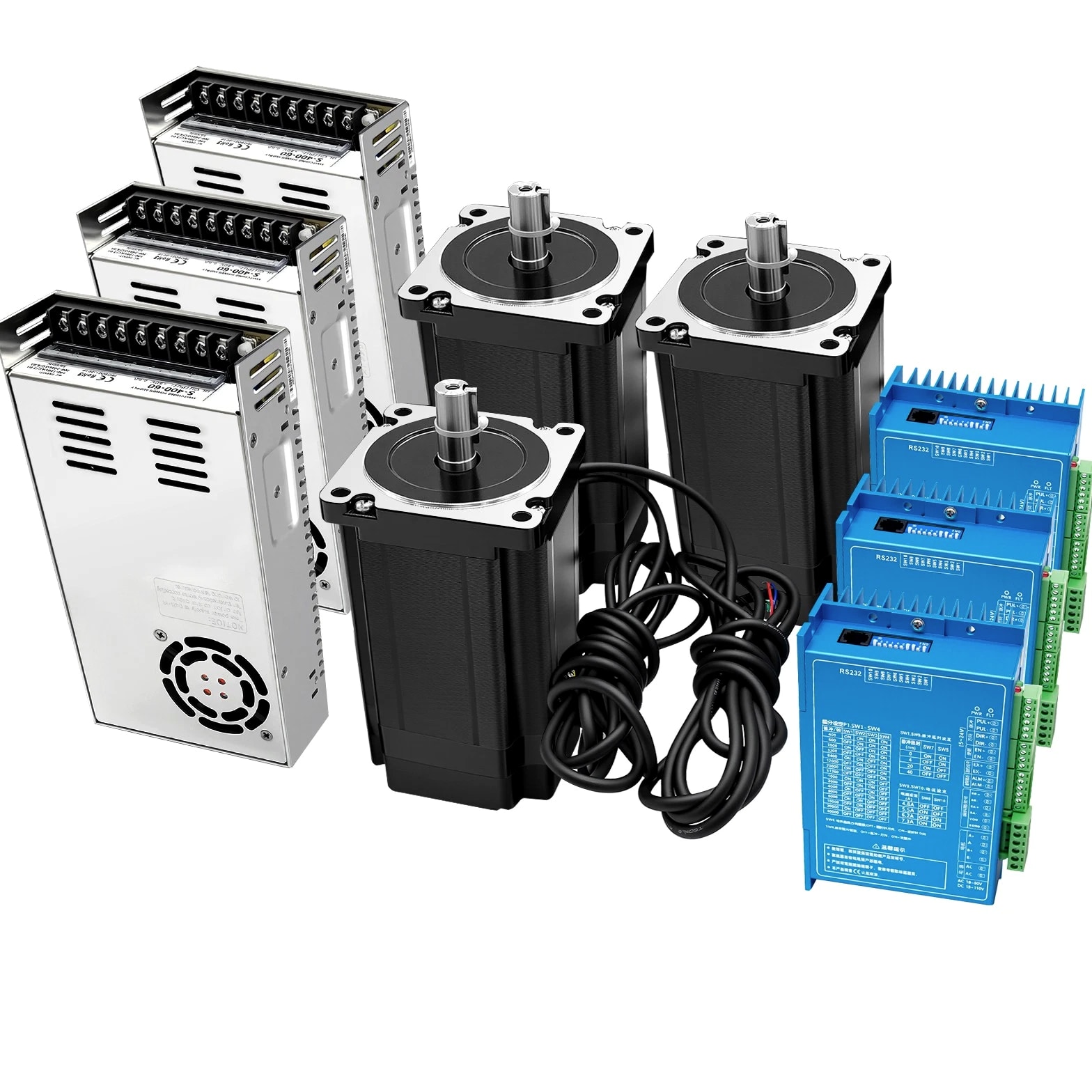

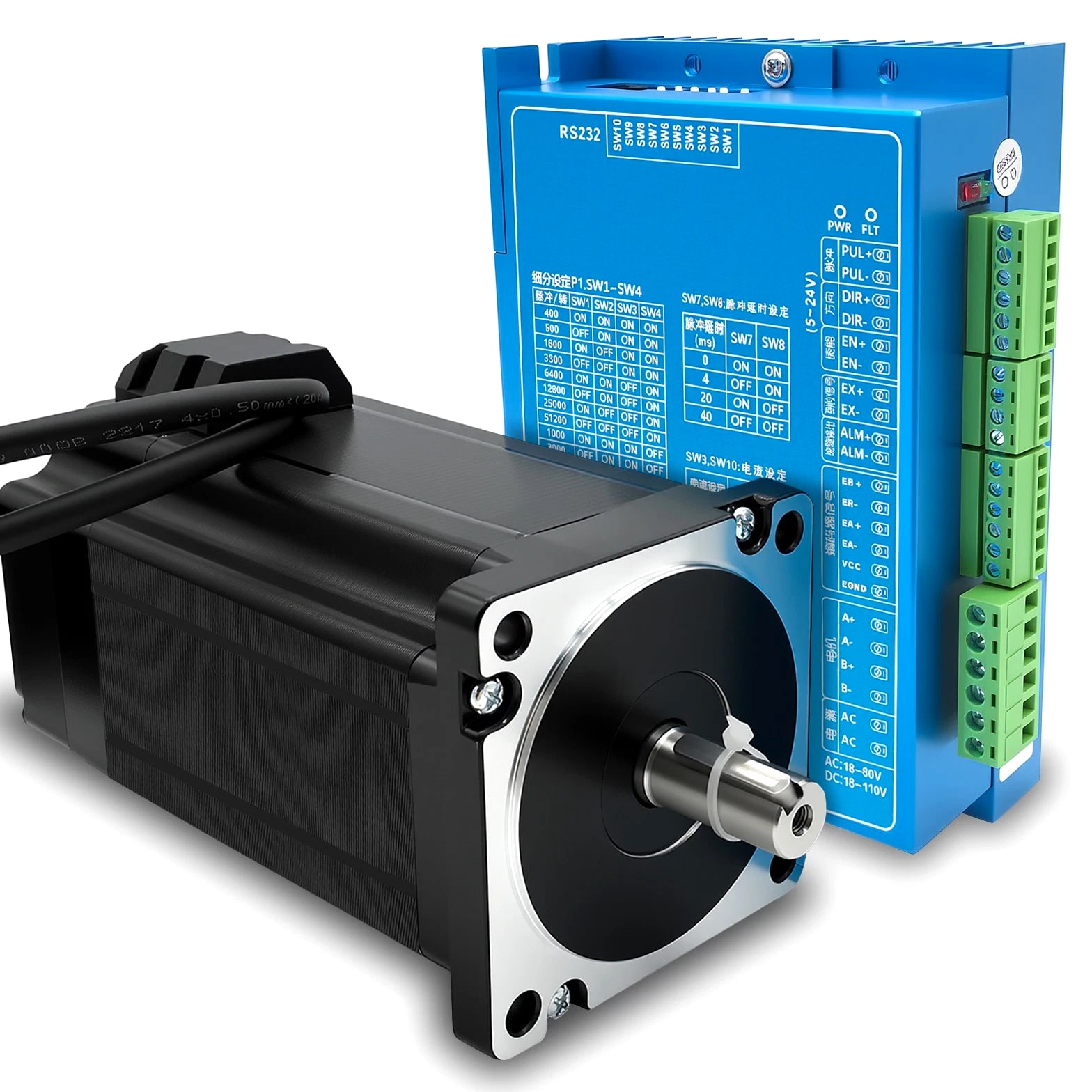

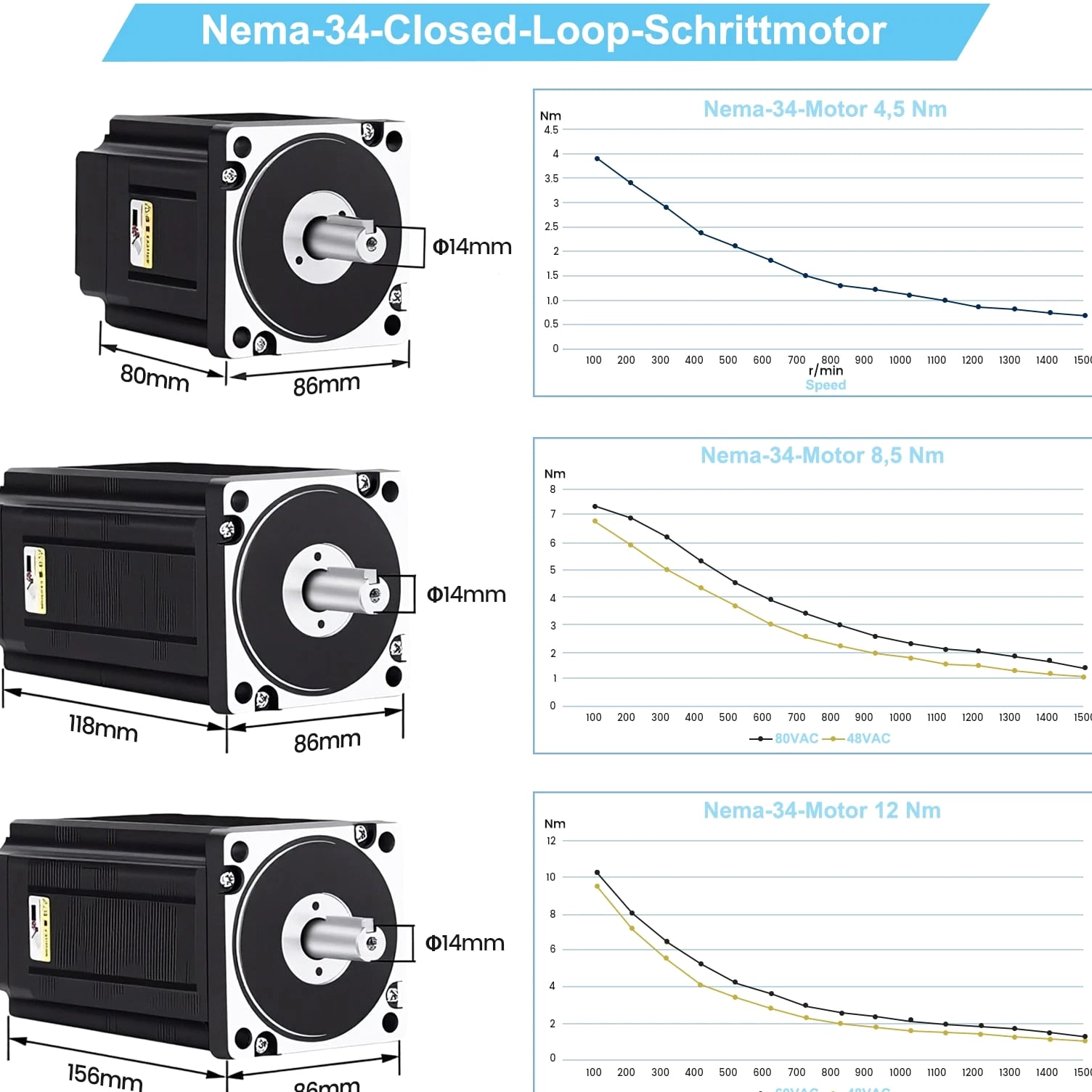

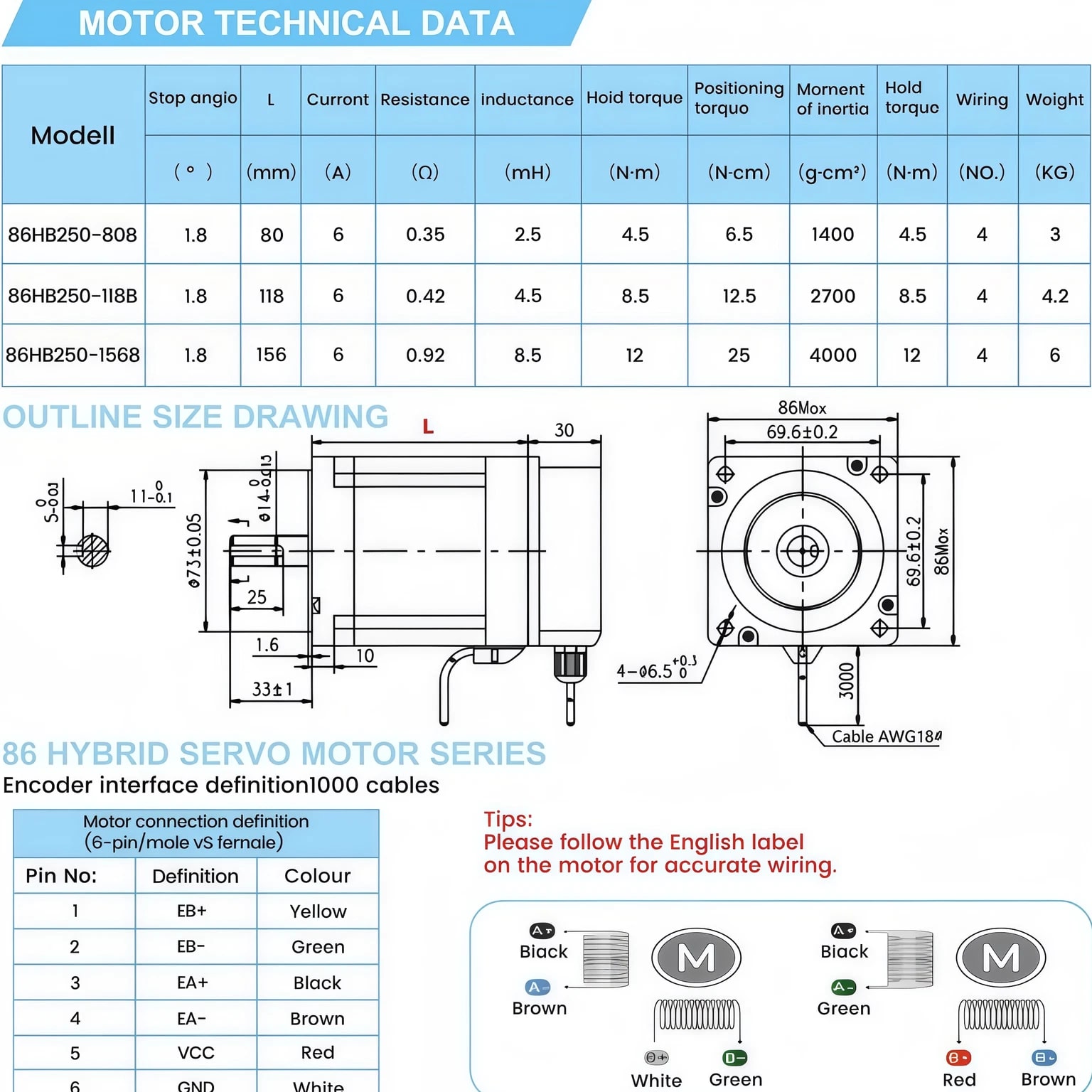

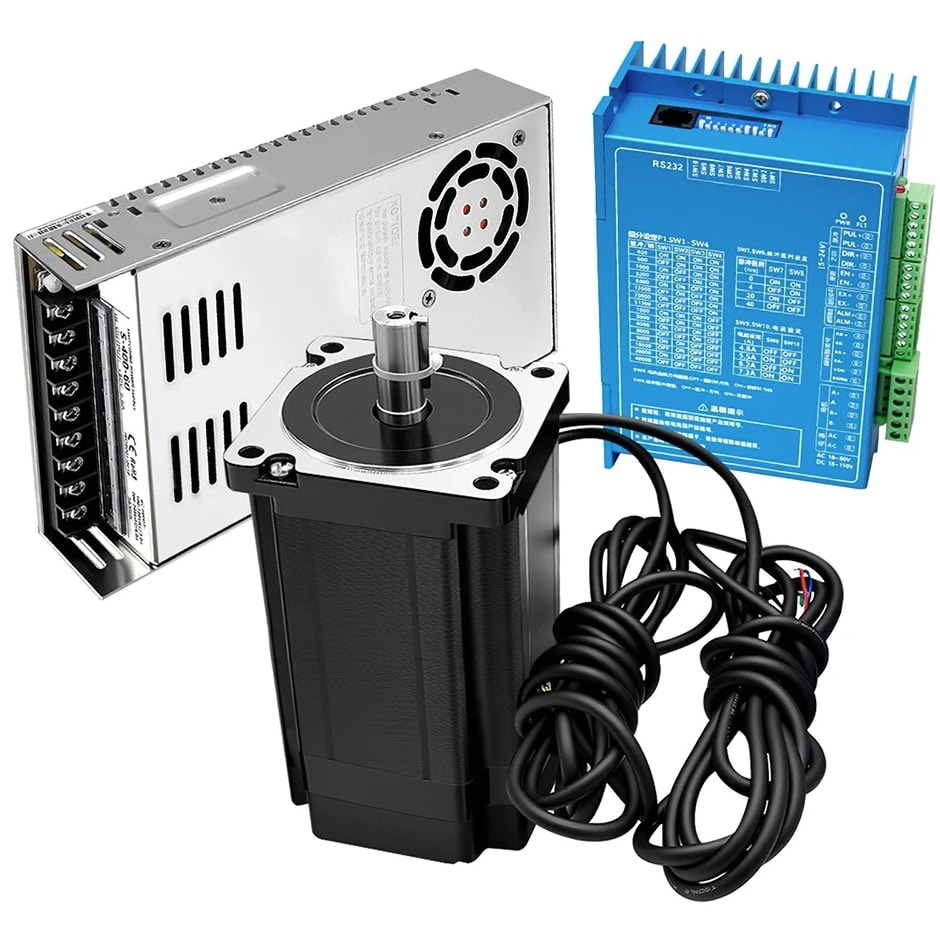

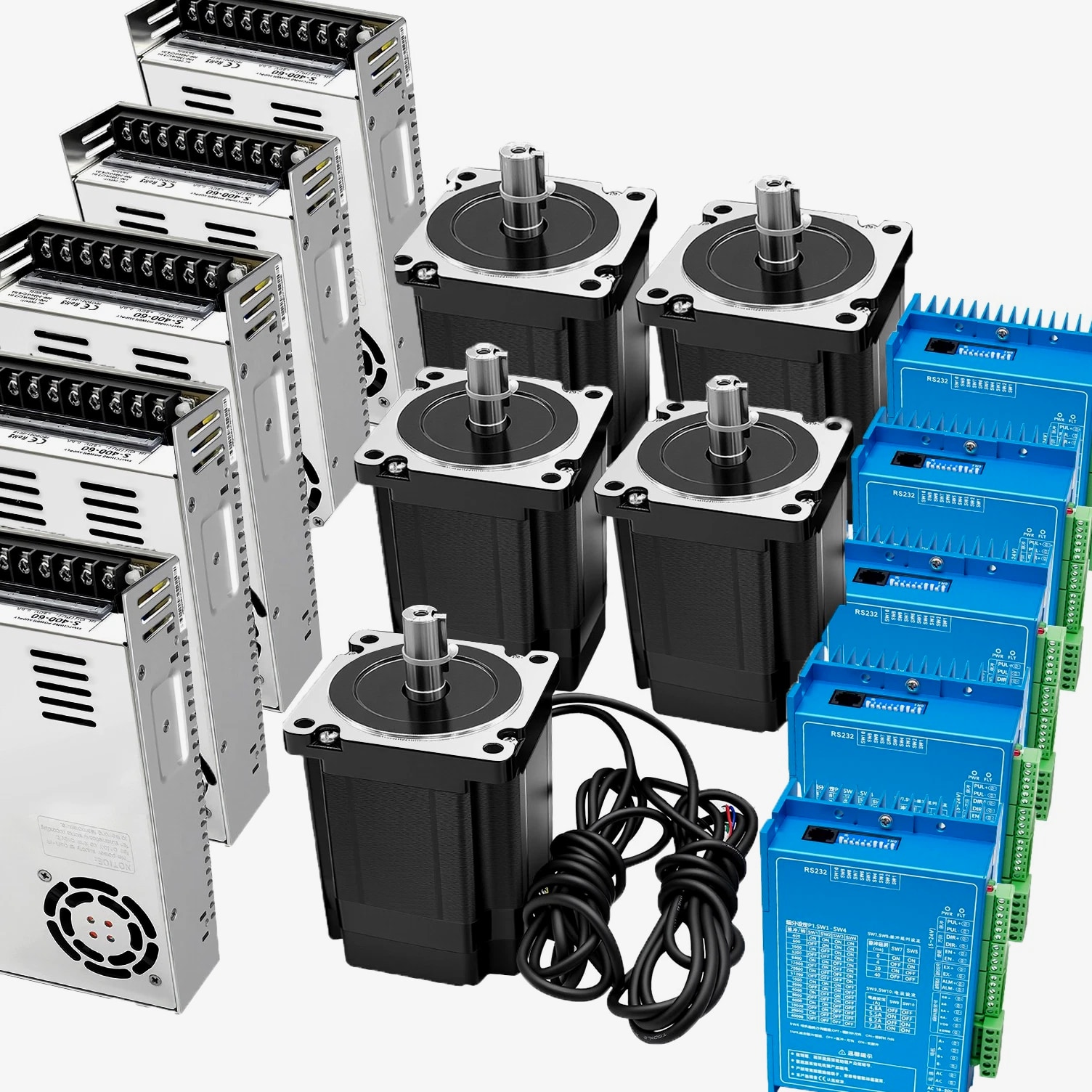

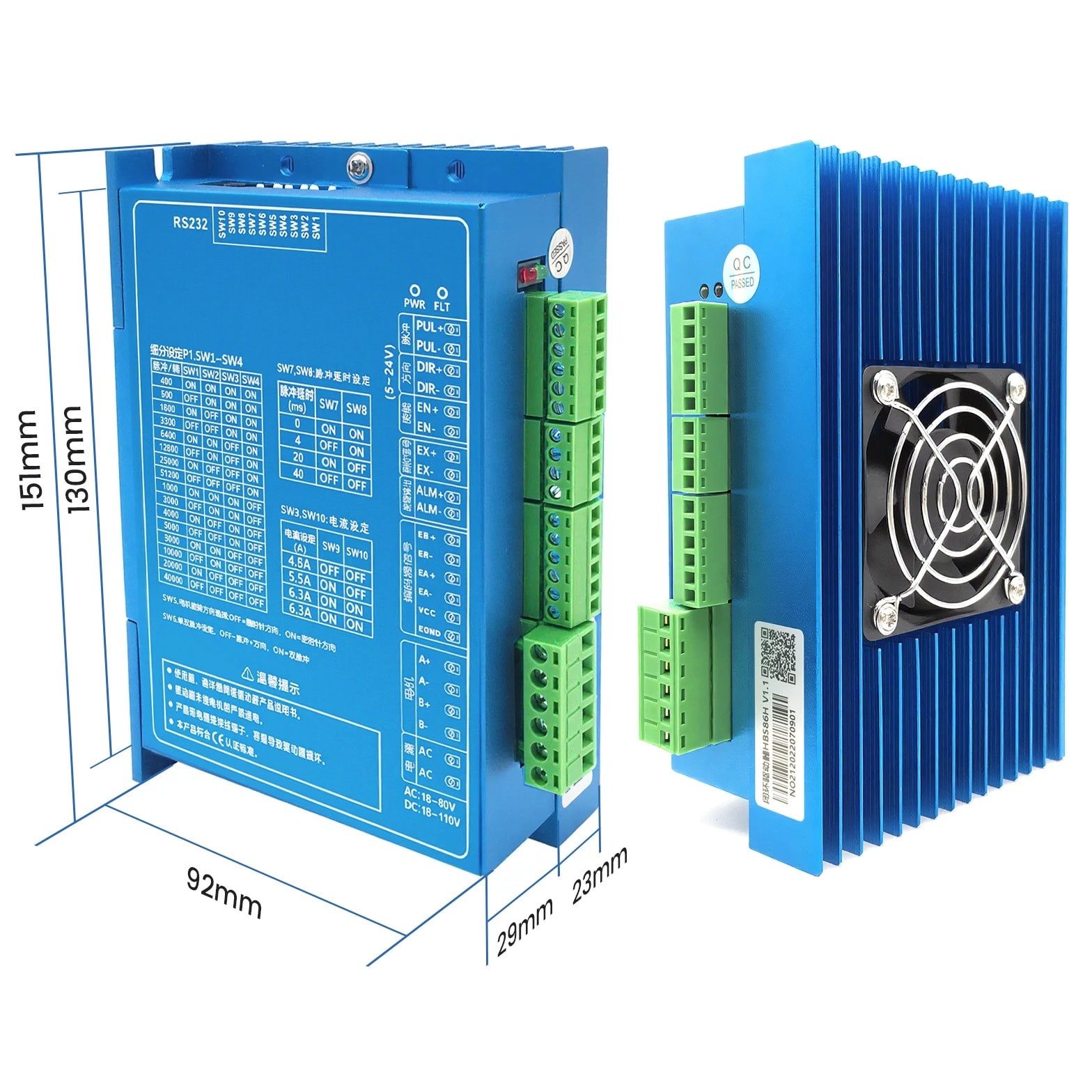

1/3/5 Axis Nema34 Closed Loop Stepper Hybrid Servo Motor Driver Kit + 60V DC Power 1/5-Axis NEMA34 Closed-Loop 86-Step Hybrid Servo Motor Driver Power Supply Kit ✅[Packing List] 1~5* HBS86H Driver 1~5 * Closed loop stepper Motor (4.5Nm/8.5Nm/12Nm, please choose as needed) 1~5 * 3M Encoder Cable 1~5 * 60V, 400W switching power supply Motor Parameters: Step angle: 1.8° Body length: 80/118/156mm—please select as needed Operating current: 6A Holding torque: 4.5Nm/8.5Nm/12Nm, please select as needed Wiring method: 4-wire HBS86H Driver Functional Characteristics: Model: HBS86H Type: DSP Closed loop stepper drive Maximum peak current: 8A Impulse response frequency: 200KHz Micro-stepping driver: 200~51200ppr Input Voltage: 20~80VAC/30–110VDC Protective function: Over voltage, over current, tracking error, over proof Signal input: Support PUL/DIR and CW/CCW modes (difference) Compatible: 5~24V signal (Don't need a resistor) Type of cooling: Air-cooling Logic Signal Current: 7–16 Ma Power Supply Parameter: Power: 400W Input Voltage (AC): 110V/220V (±10%) Output Voltage (DC): 60VDC Output Current: 6.6A Safety Compliance: CCC/FCC/CE Description Achieve exceptional precision and accuracy with the Nema 34 closed loop stepper motor kit, delivering reliable performance for your demanding tasks. The Nema 34 closed loop stepper motor driver kit finds extensive use in fields such as machine tools, 3D printers, CNC machines, carving machines and automation applications. Q: What are the key features of the closed loop stepper motor driver kit? A: The closed loop stepper motor driver kit boasts features such as precise position control, real-time feedback, and automatic error correction. It ensures reliable and accurate motor performance even in challenging environments. Q: What are the applications of the closed loop stepper motor driver kit? A: The closed loop stepper motor driver kit finds applications in various industries requiring precise and reliable motion control, such as CNC machi
