Item Description

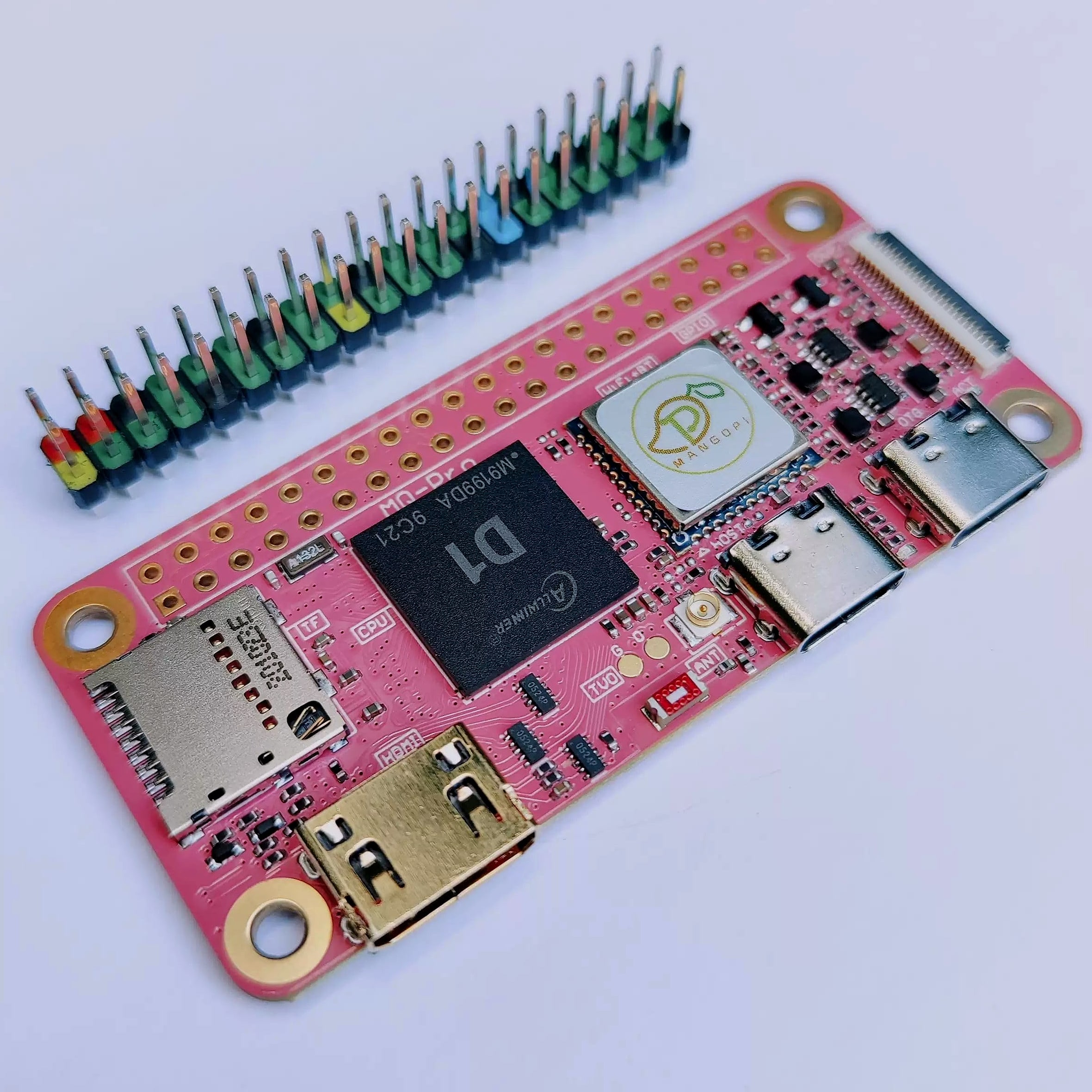

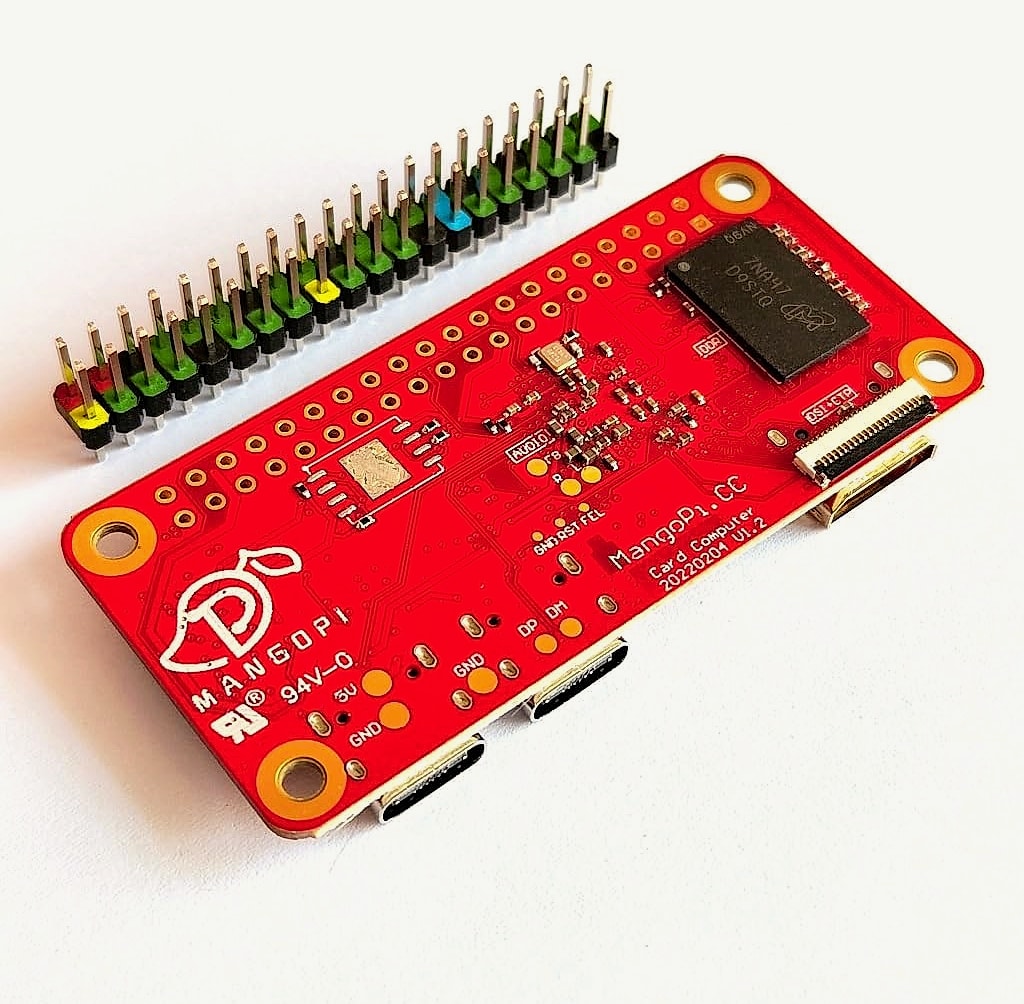

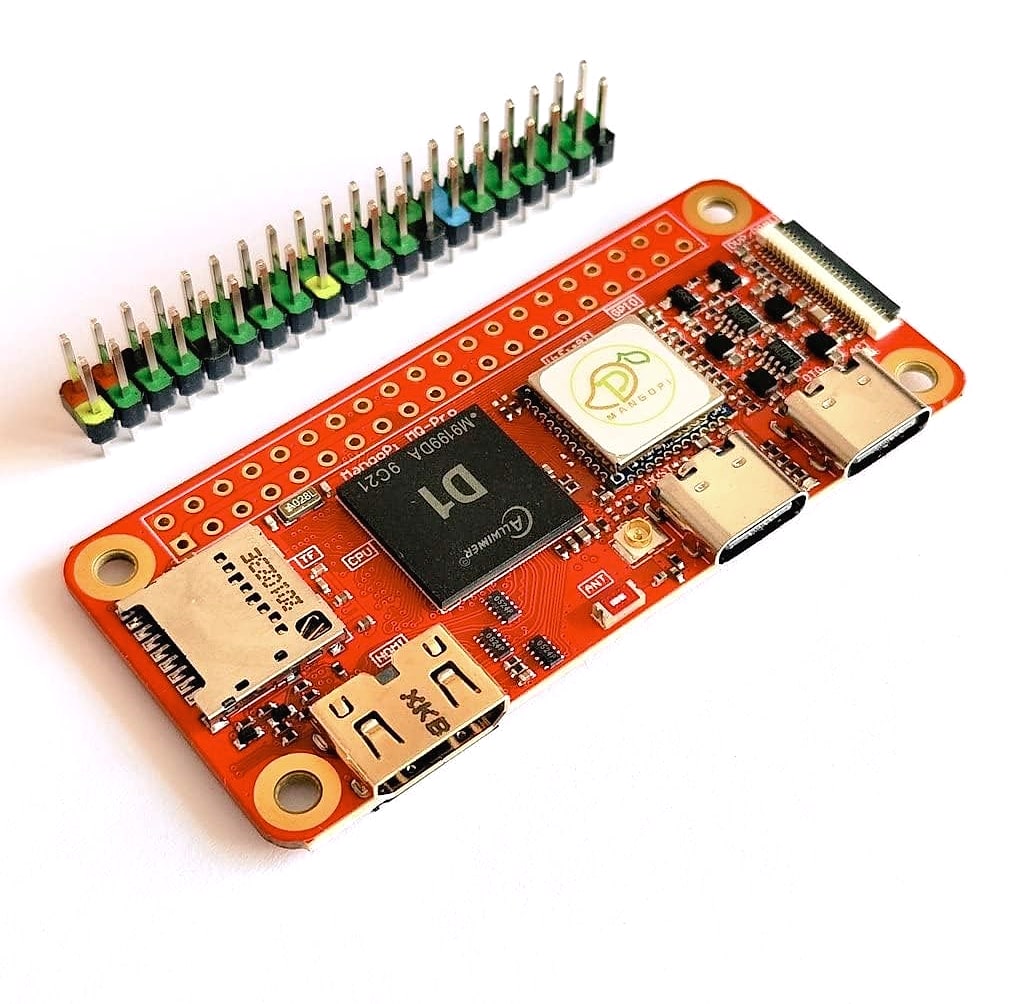

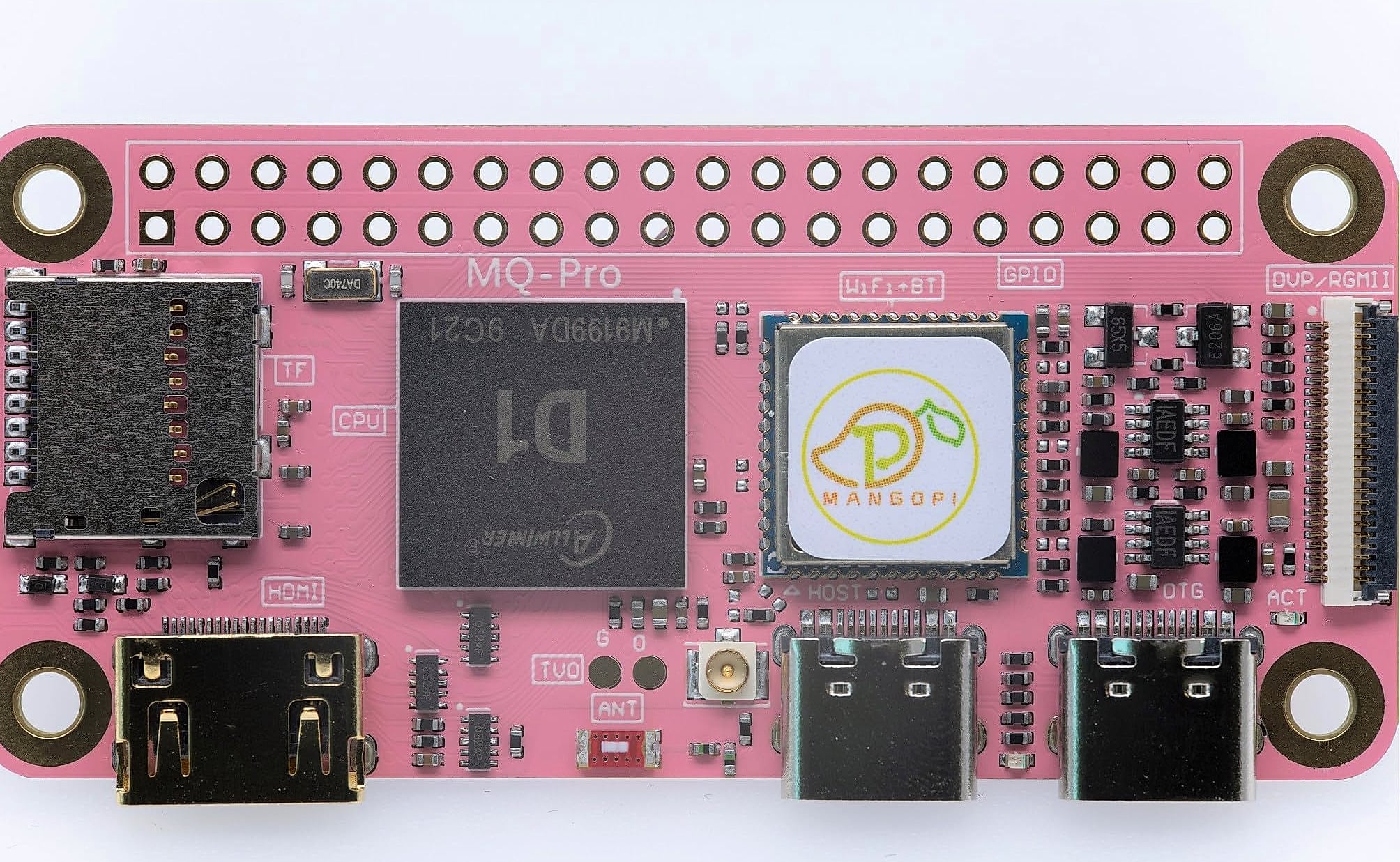

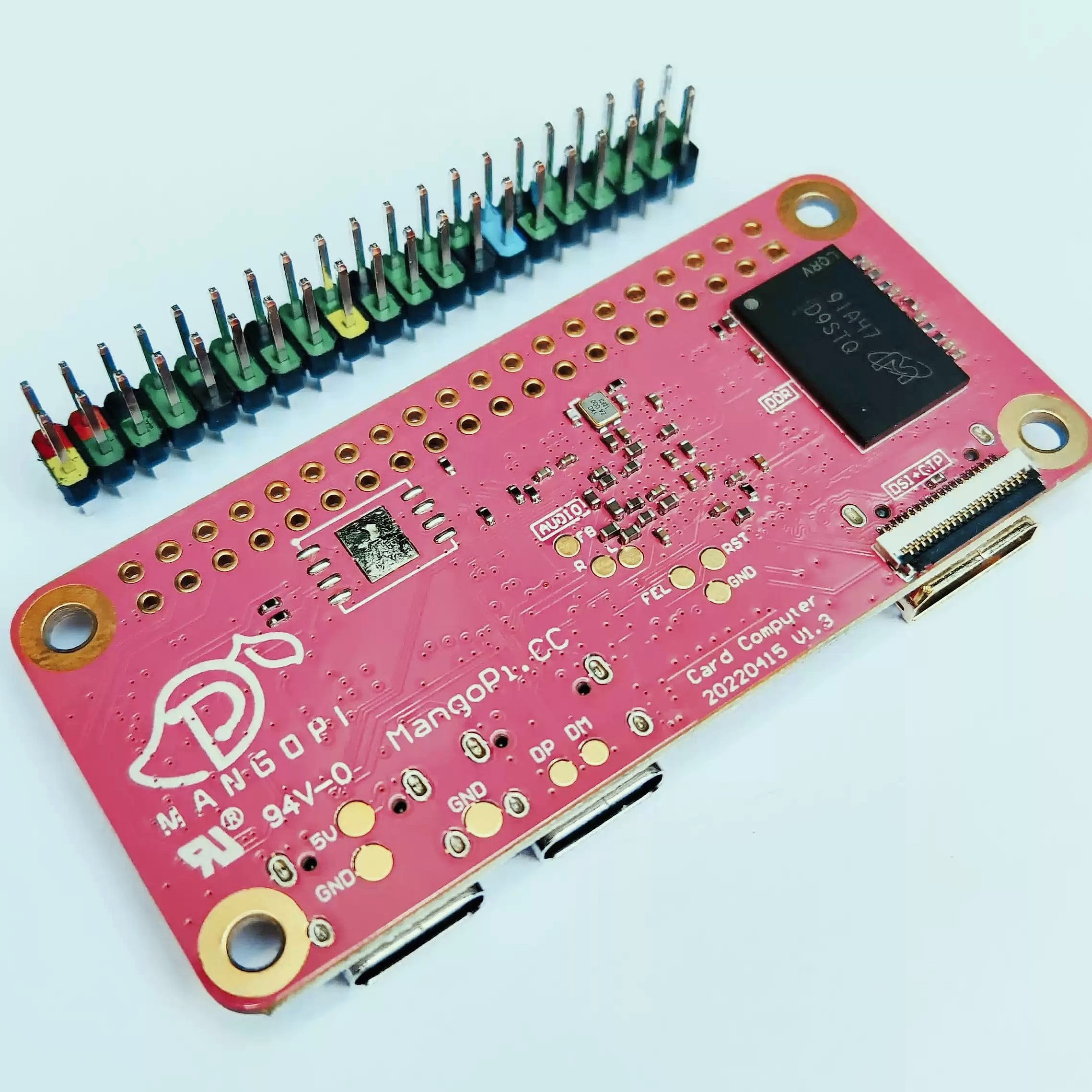

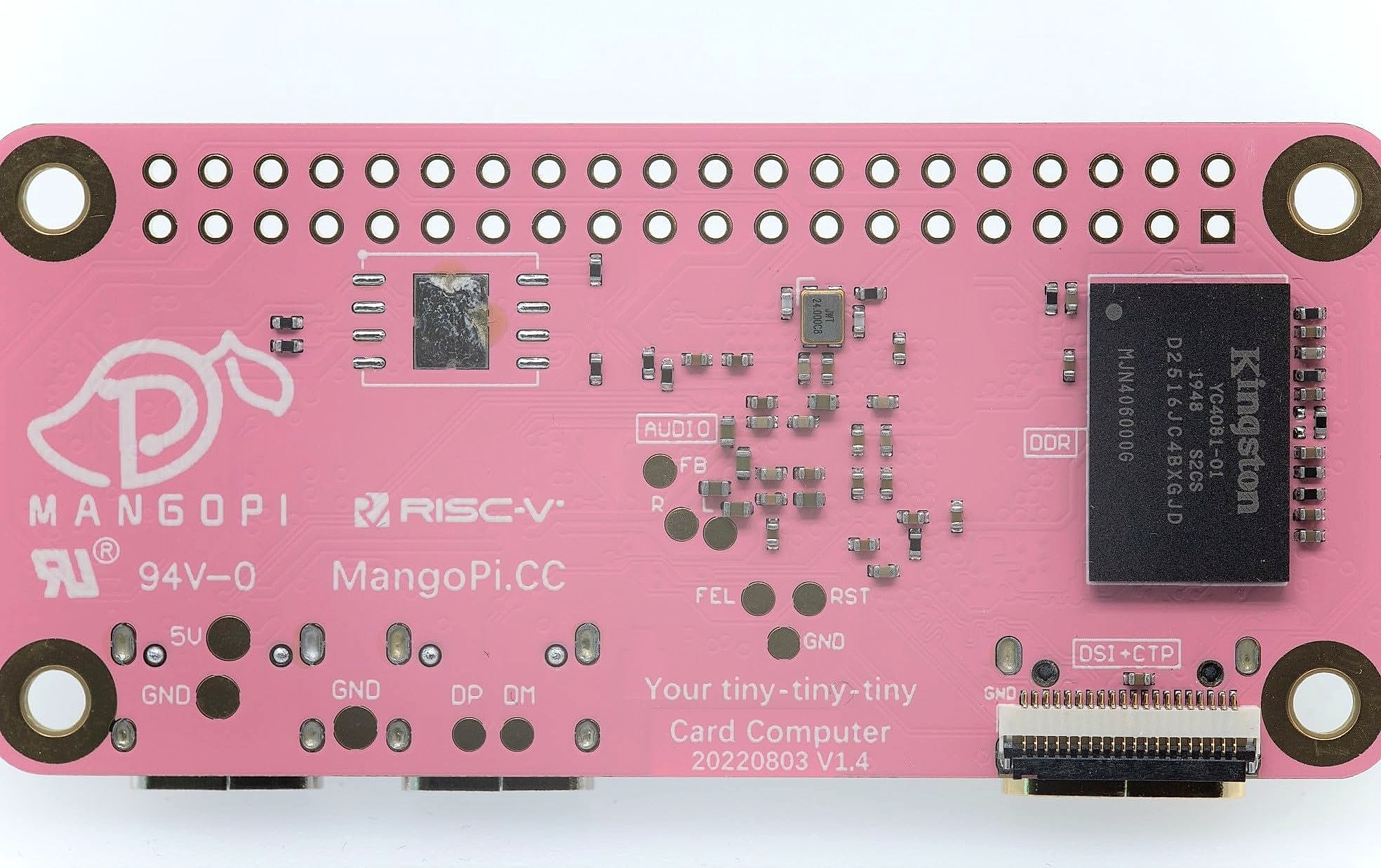

The MangoPi MQ-Pro is a compact single board computer built around the Allwinner D1 SoC with a T-Head XuanTie C906 64-bit RISC-V processor running at 1.0GHz. With 512MB of DDR3 RAM and a footprint of just 6.5 x 3 cm, it packs genuine Linux computing into something you can hold in your hand. This makes it perfect for IoT prototyping, embedded projects, or anyone curious about RISC-V architecture without needing a full-sized development board. Connectivity is handled by an integrated RTL8723DS WiFi and Bluetooth module with onboard antenna, so you get wireless capability right out of the box. The board includes Mini HDMI output for display connections, a 20-pin DSI/LVDS/CTP connector for LCD screens, and a 24-pin DVP interface for camera input if you're doing machine vision work. The 40-pin GPIO header is compatible with Raspberry Pi HATs and accessories, which means you can leverage existing add-on boards and sensor libraries. Dual USB Type-C ports handle both OTG and host duties, while the MicroSD slot provides storage flexibility. This is the V1.4a revision with an improved antenna design. The board runs Tina-Linux, Debian, and Armbian, with full Python support built in. Documentation includes schematics and community resources on GitHub, so you're not starting from scratch. Whether you're exploring alternative processor architectures or need something genuinely tiny for a specific application, the MQ-Pro delivers real functionality in a minimal package.
