Item Description

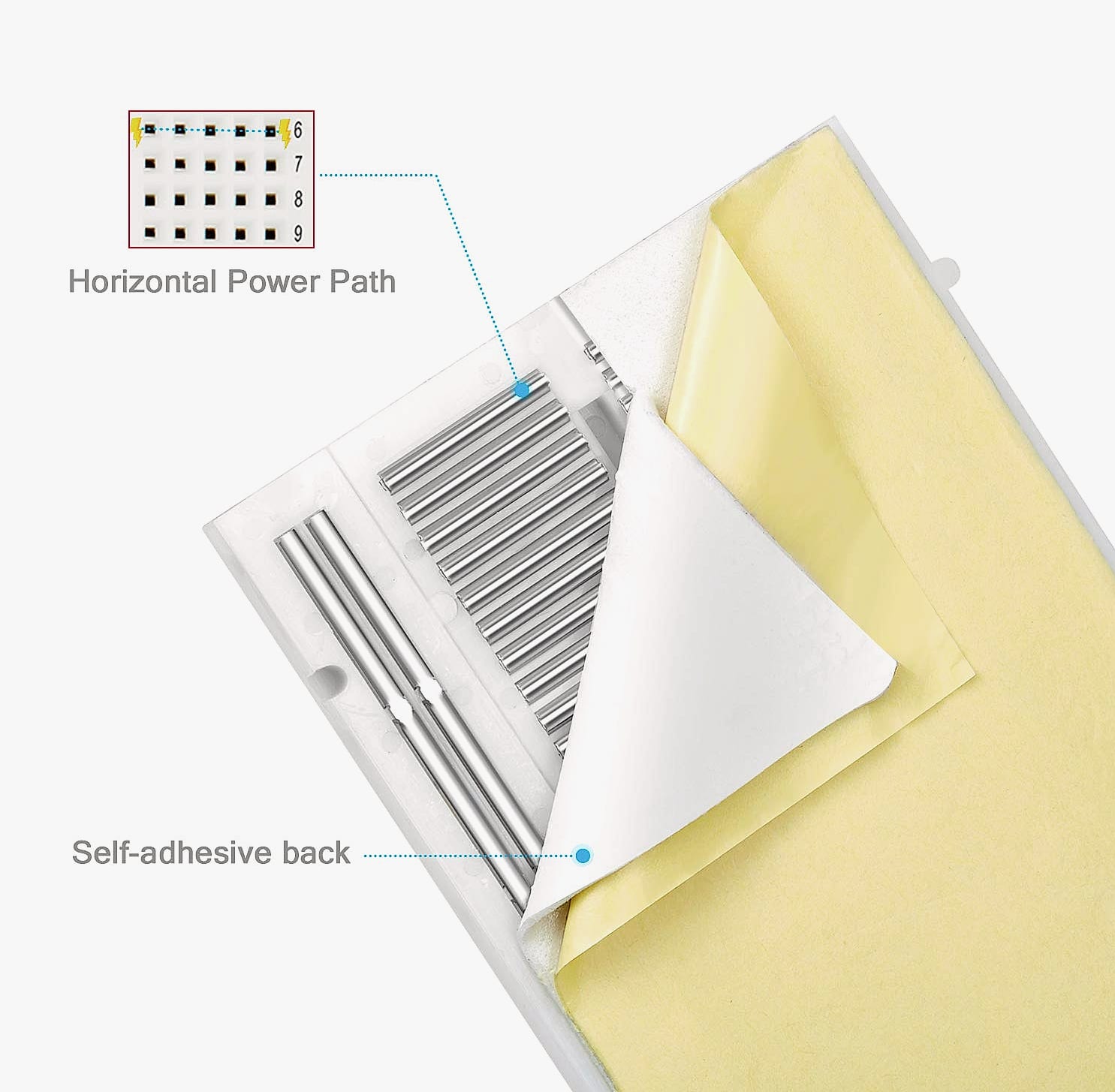

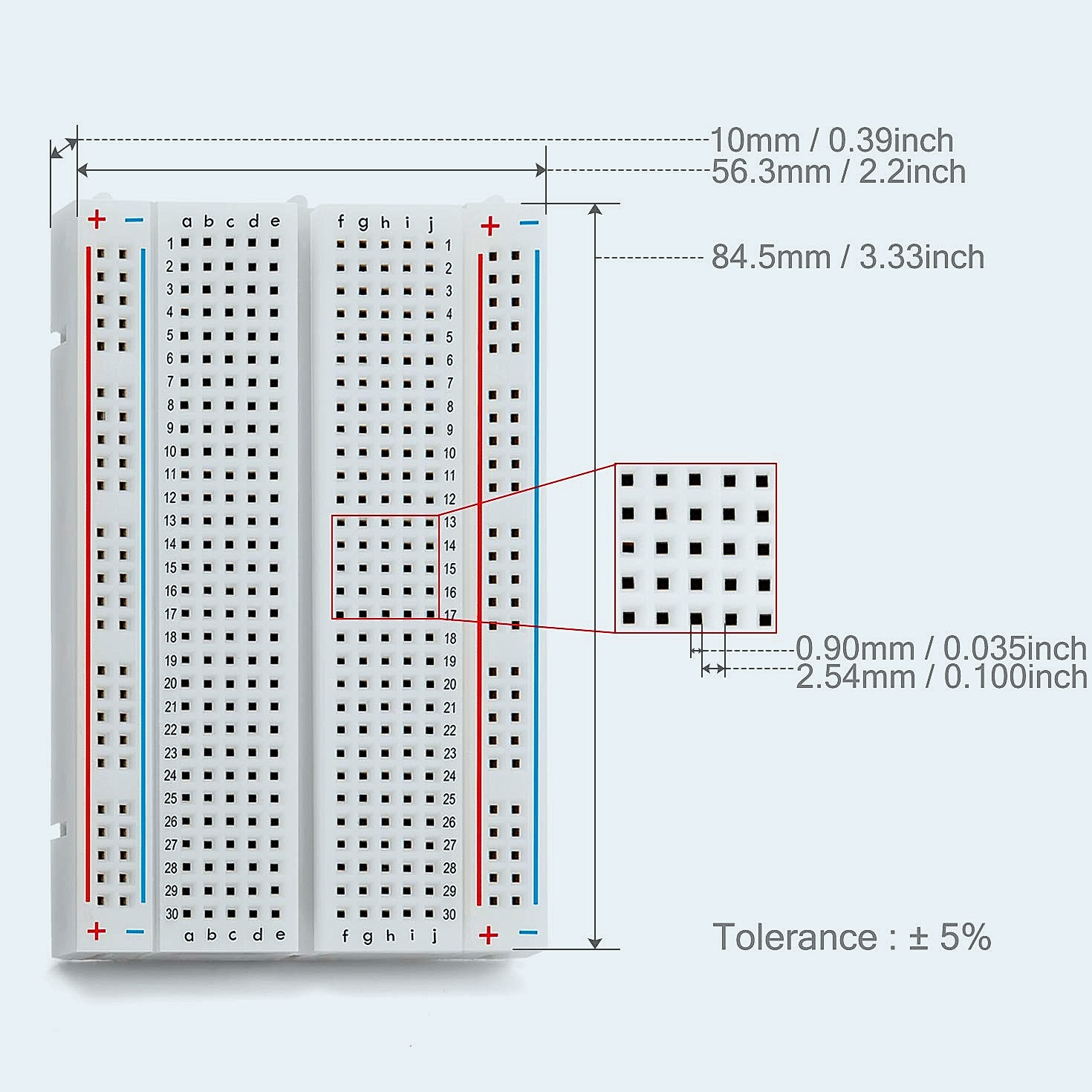

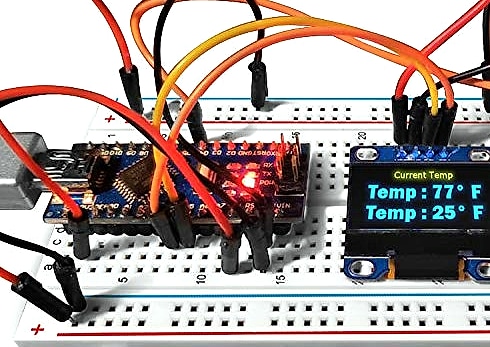

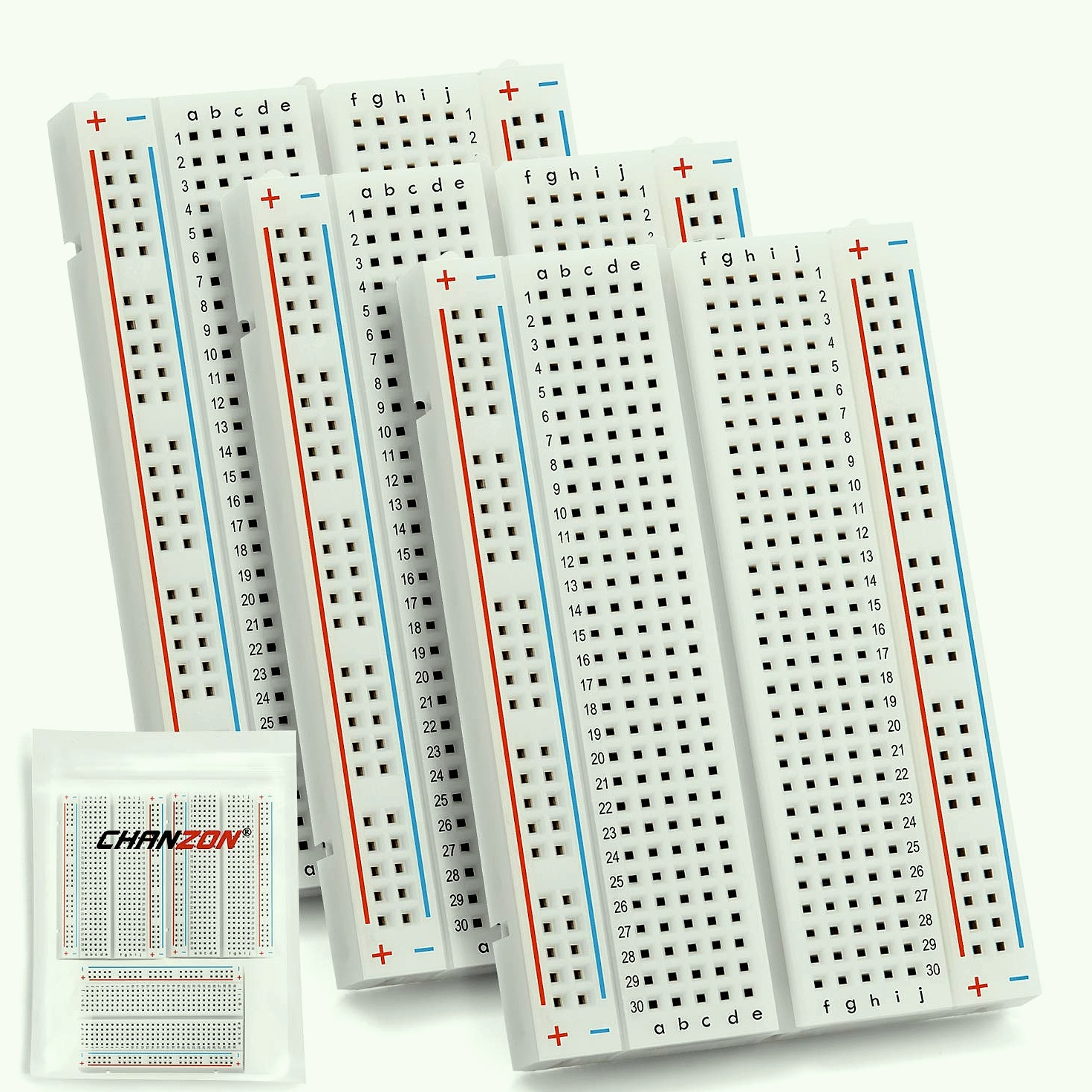

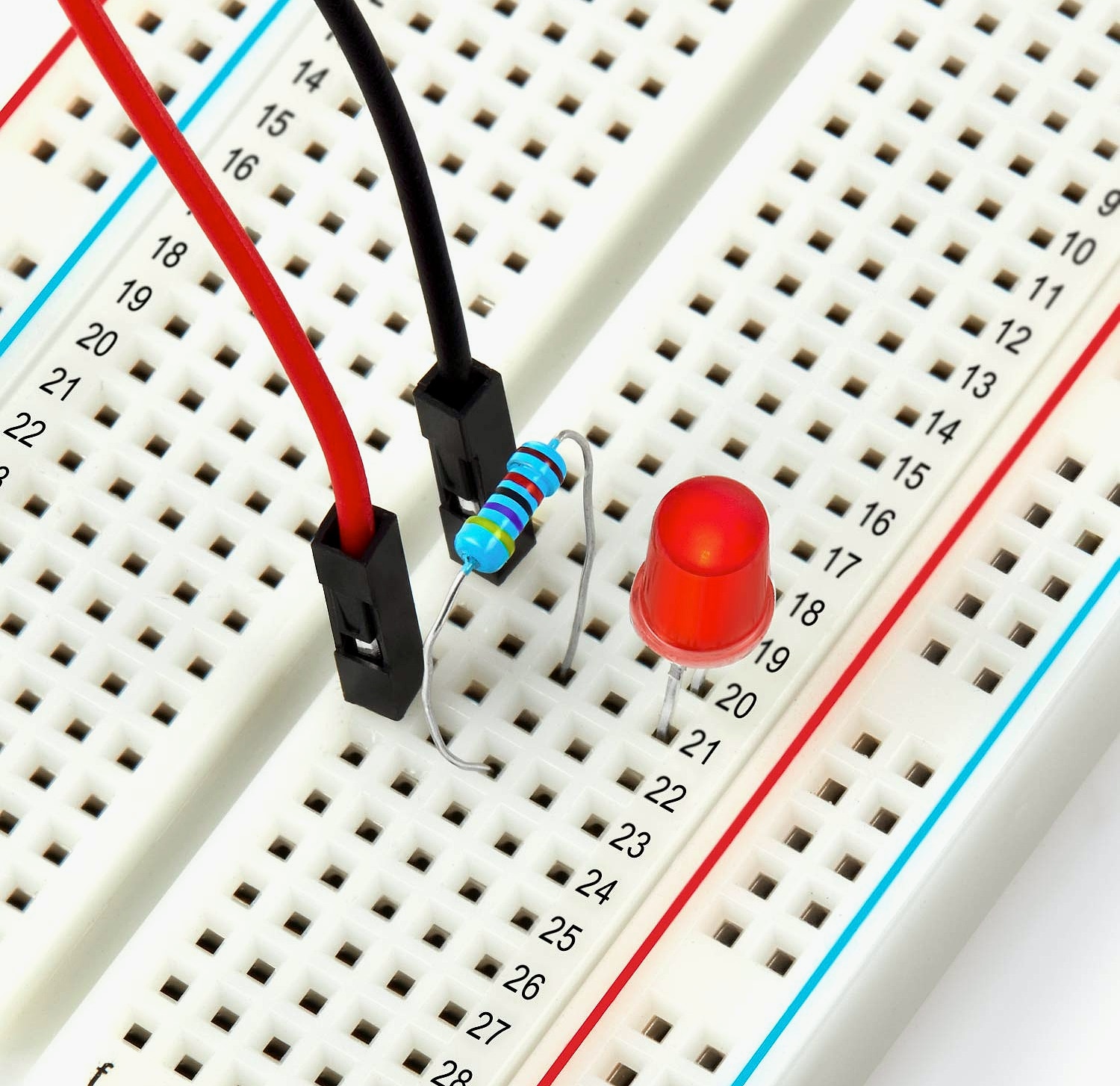

This is a practical set of three solderless breadboards from CHANZON, perfect for anyone building circuits without soldering. Each board features 400 tie points with a solid construction using tight metal springs underneath every connection point. The springs align precisely with the holes, so all 400 points provide consistent, reliable electrical contact. Current flows horizontally across the power rails, with 5 insertion points per power path to keep electrical resistance low. The boards can be linked together using bolts on the sides when you need more space for larger projects. Each breadboard includes removable power rails on both sides, plus self-adhesive backing for mounting on surfaces. The specifications are straightforward: 0.9mm hole diameter, 2.54mm hole pitch, 10mm thickness, rated for 300V with current handling up to 5A. The white ABS material is durable and suitable for 20-29 AWG jumper wires, including standard dupont connectors. These boards work great with standard electronic components like resistors, capacitors, diodes, LEDs, ICs, transistors, and sensors. They're fully compatible with Arduino and Raspberry Pi projects, making them ideal for education, hobbies, or prototyping circuits for various applications. Whether you're learning electronics in a classroom or working on personal projects, this three-pack gives you enough breadboarding capacity for most prototyping needs.
