Item Description

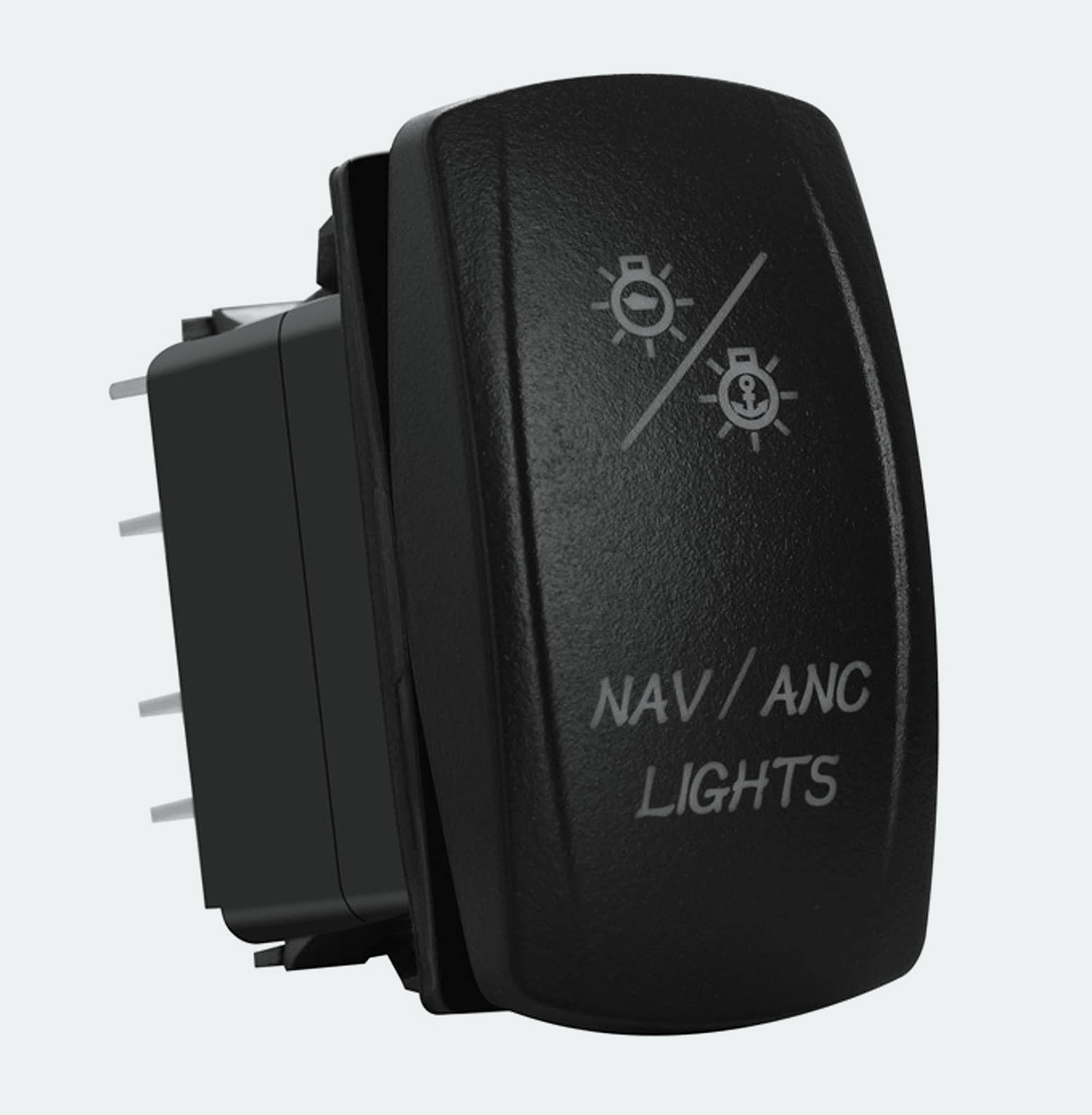

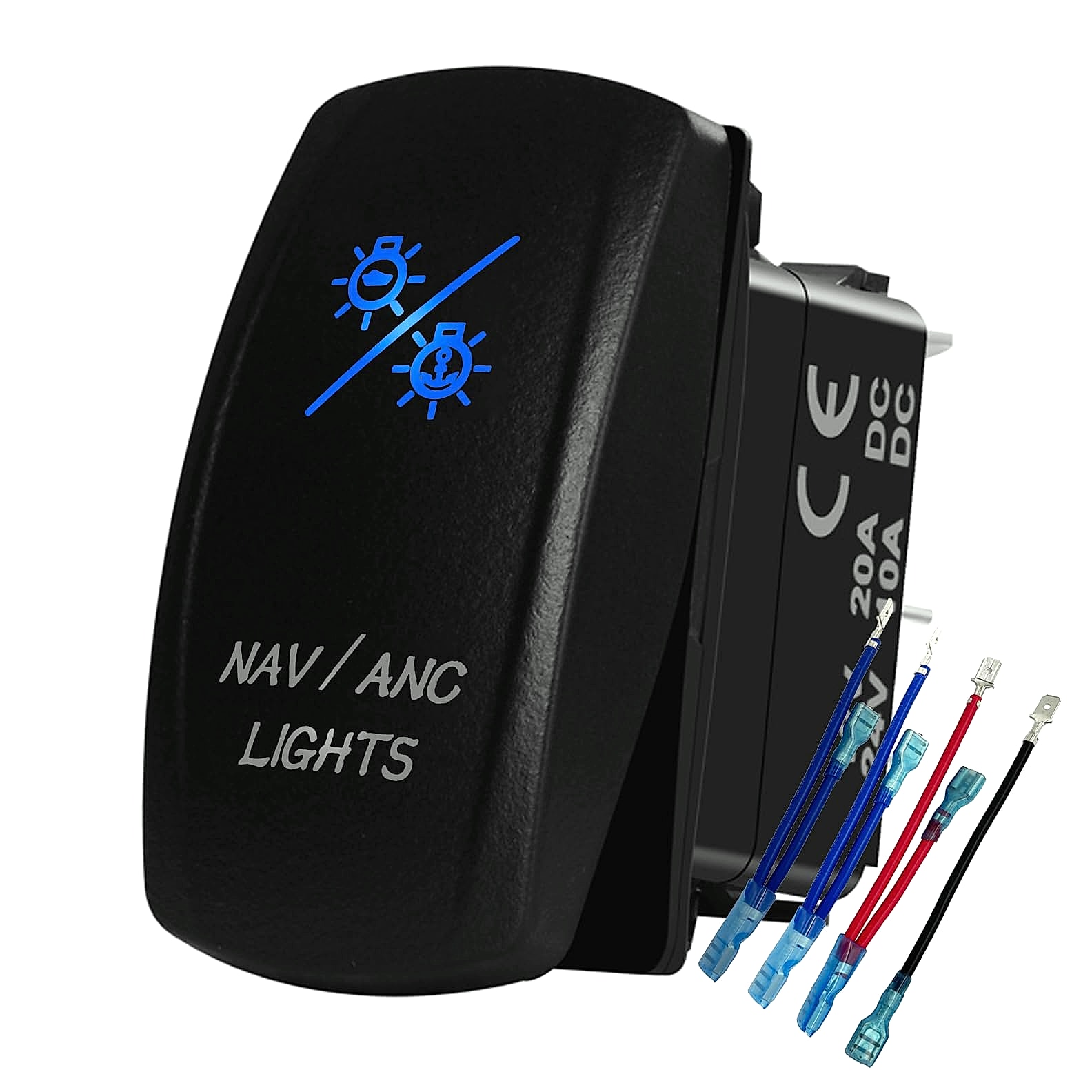

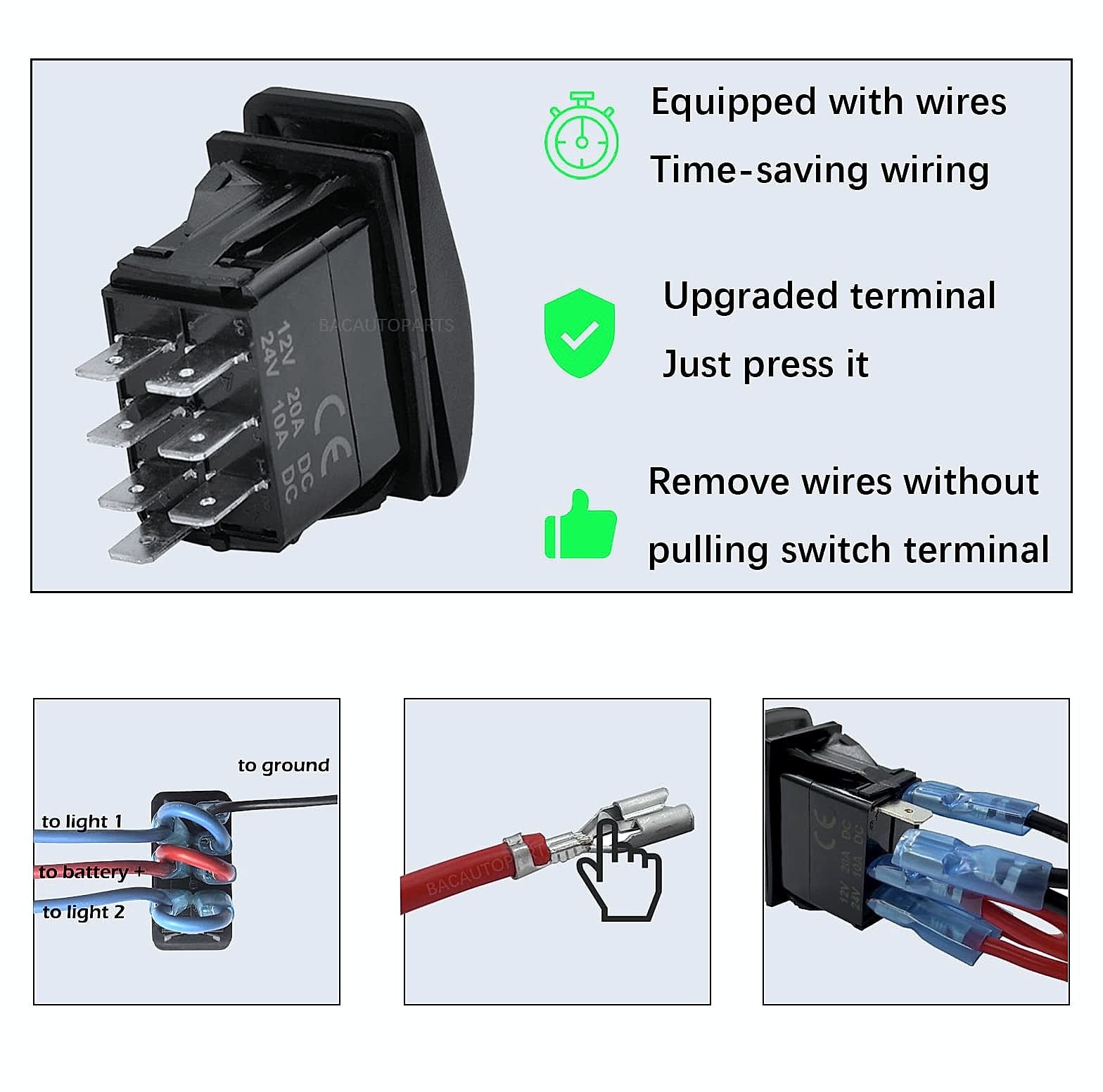

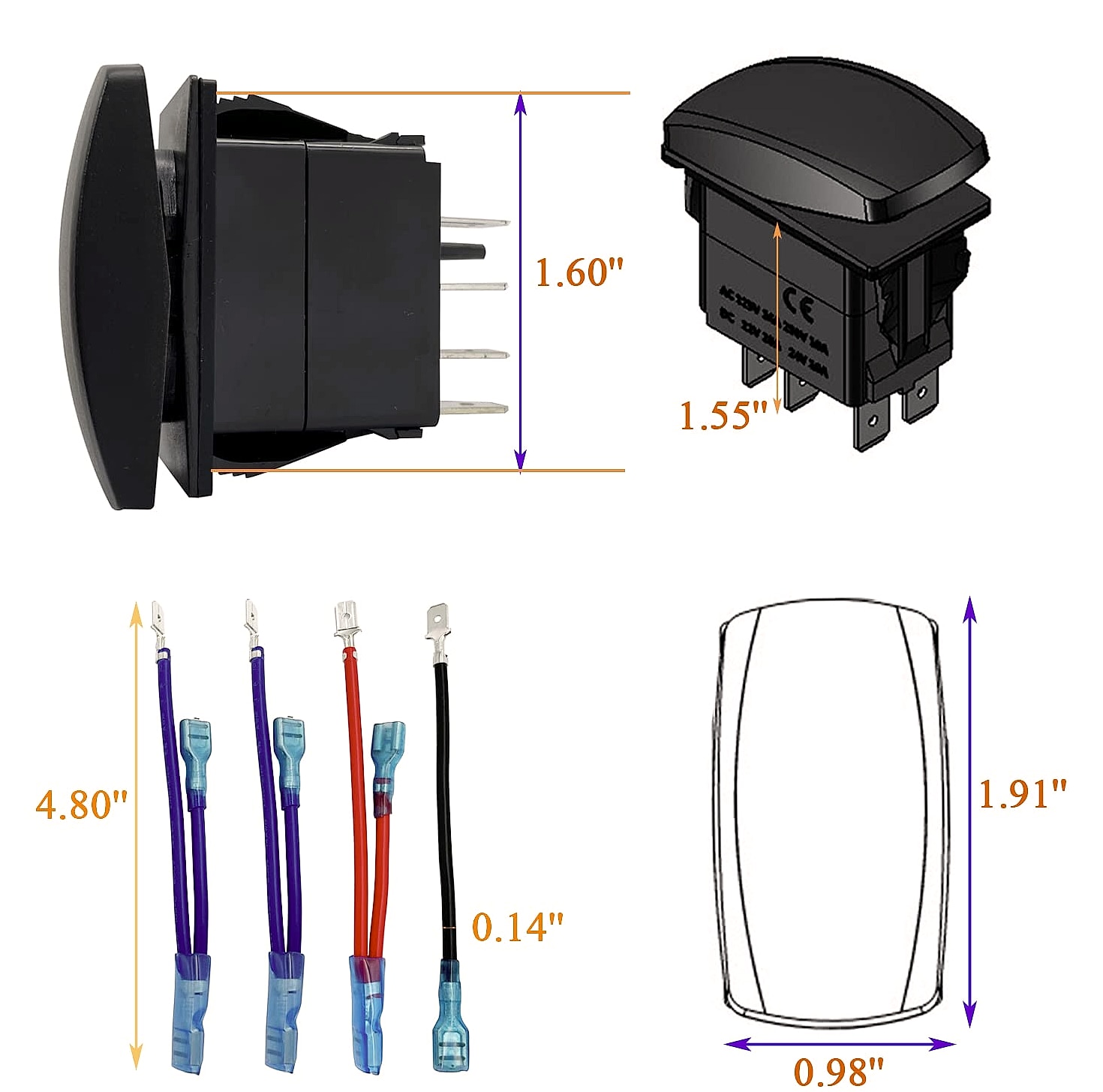

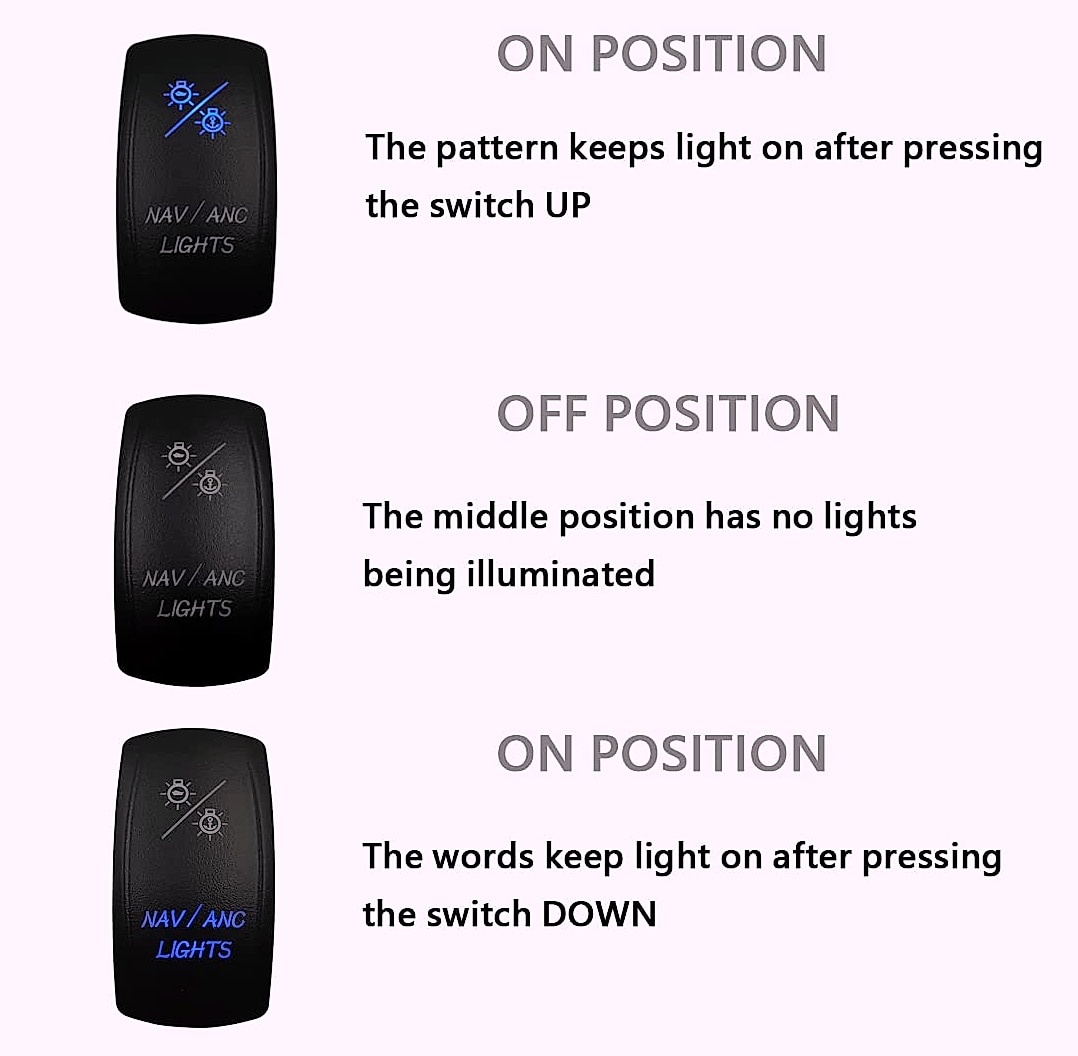

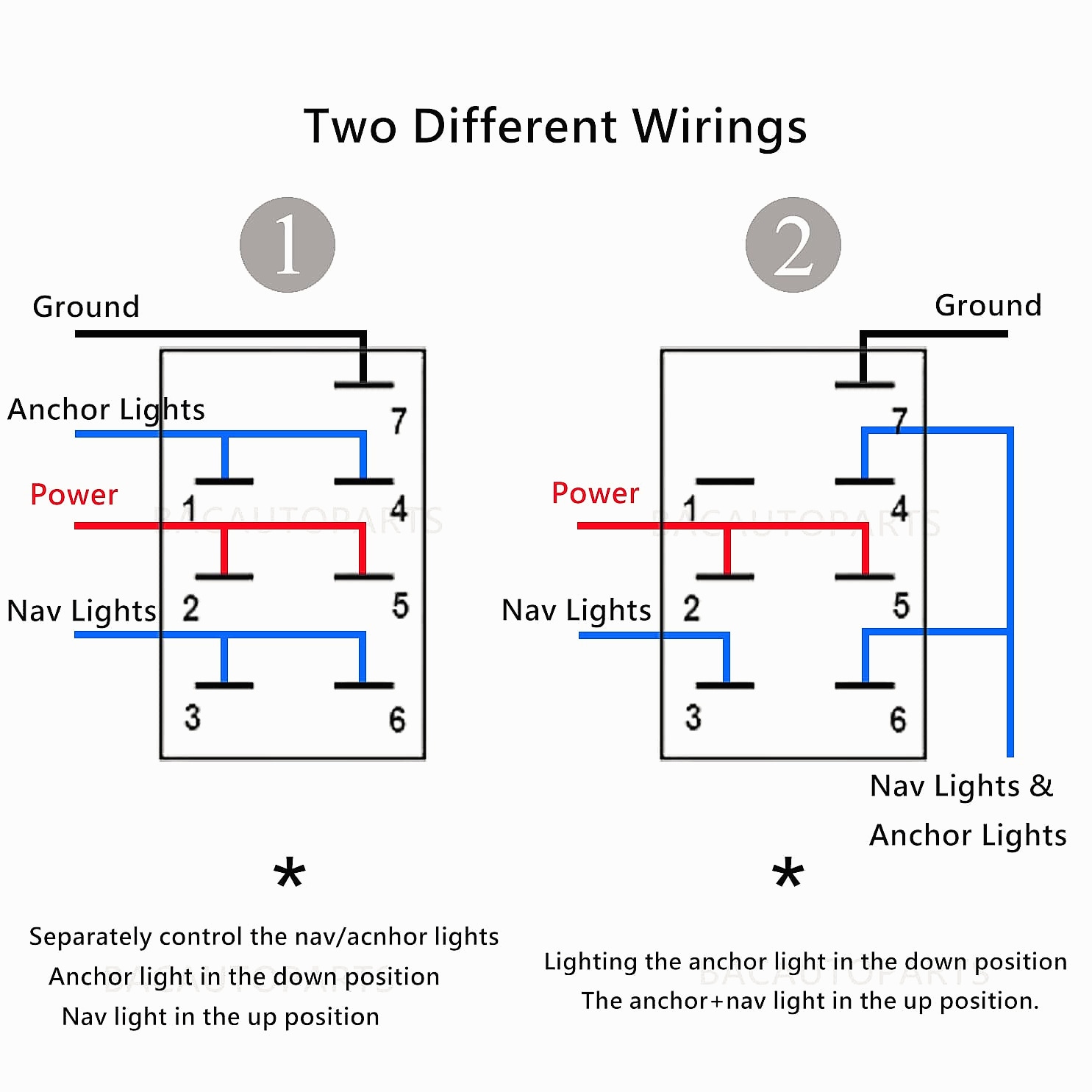

This is a dual-position rocker switch built for marine applications where you need independent control of navigation and anchor lights. The three-position design works like this: push up for navigation light, push down for anchor light, and the middle position cuts everything off. It's the kind of switch that stays put once you flip it, so you don't have to hold it in place. The switch handles up to 20 amps at 12V DC or 10 amps at 24V DC, which covers most small to mid-size boat electrical systems. The metal and ABS plastic construction with laser-etched labeling holds up well to the marine environment. Mounting is straightforward with a hole cutout of 37.2 mm by 21.2 mm, and the face sits at 49 mm by 25 mm, so it'll fit standard dash panels. The blue LED indicator gives you visual confirmation of which light is active, especially handy when you're working on the boat at dusk or dawn. Inside the box you get the 7-pin rocker switch itself, a set of jumper wires to make connections easier, and a wiring diagram so you can figure out exactly how to hook it into your existing system. Whether you're outfitting a fishing boat, sailboat, or work vessel, this toggle switch integrates easily with 12V or 24V battery setups. The same switch works across different marine applications, and honestly it's a solid choice if you want reliable light switching without complicated electrical work.
