Item Description

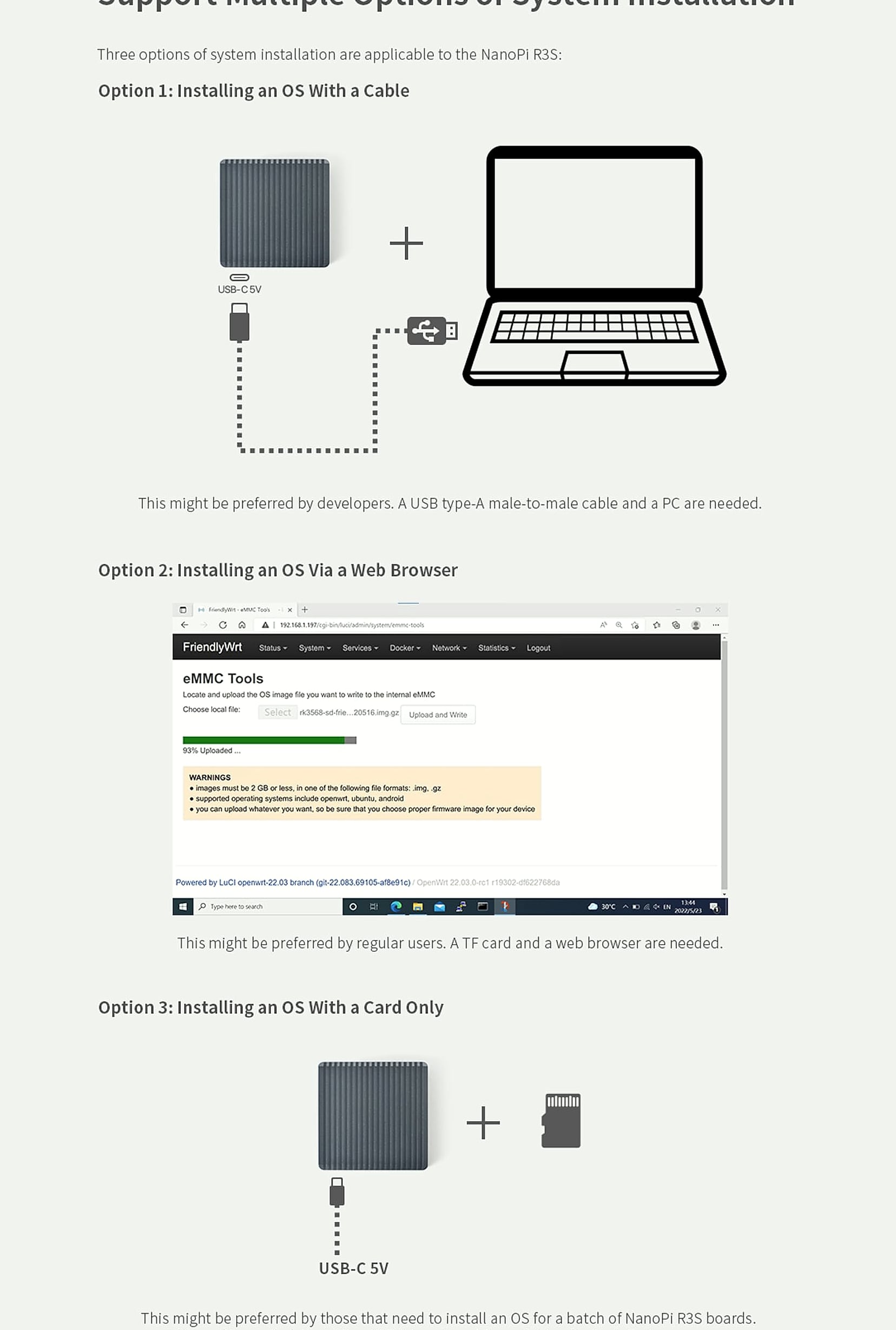

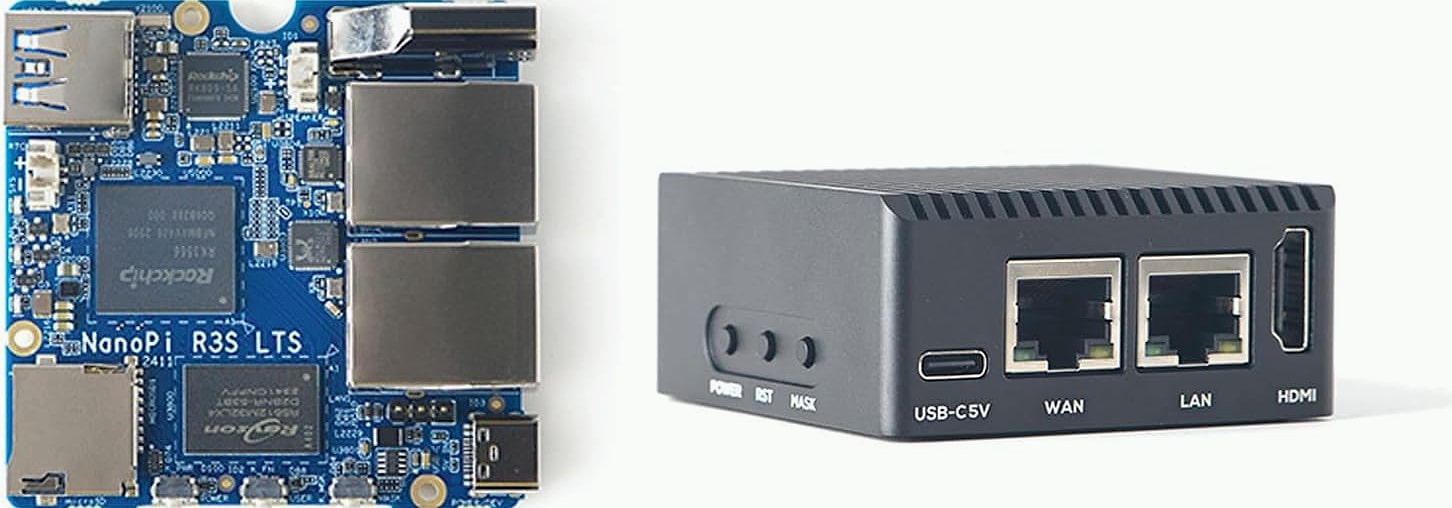

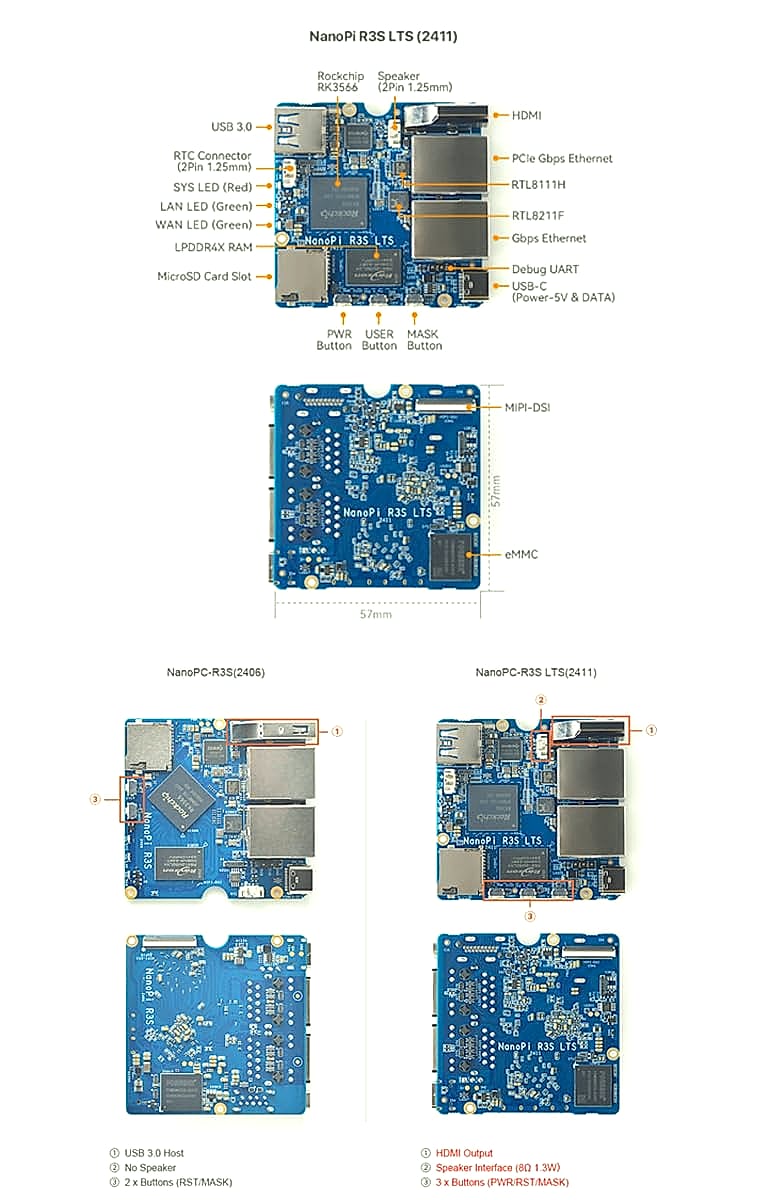

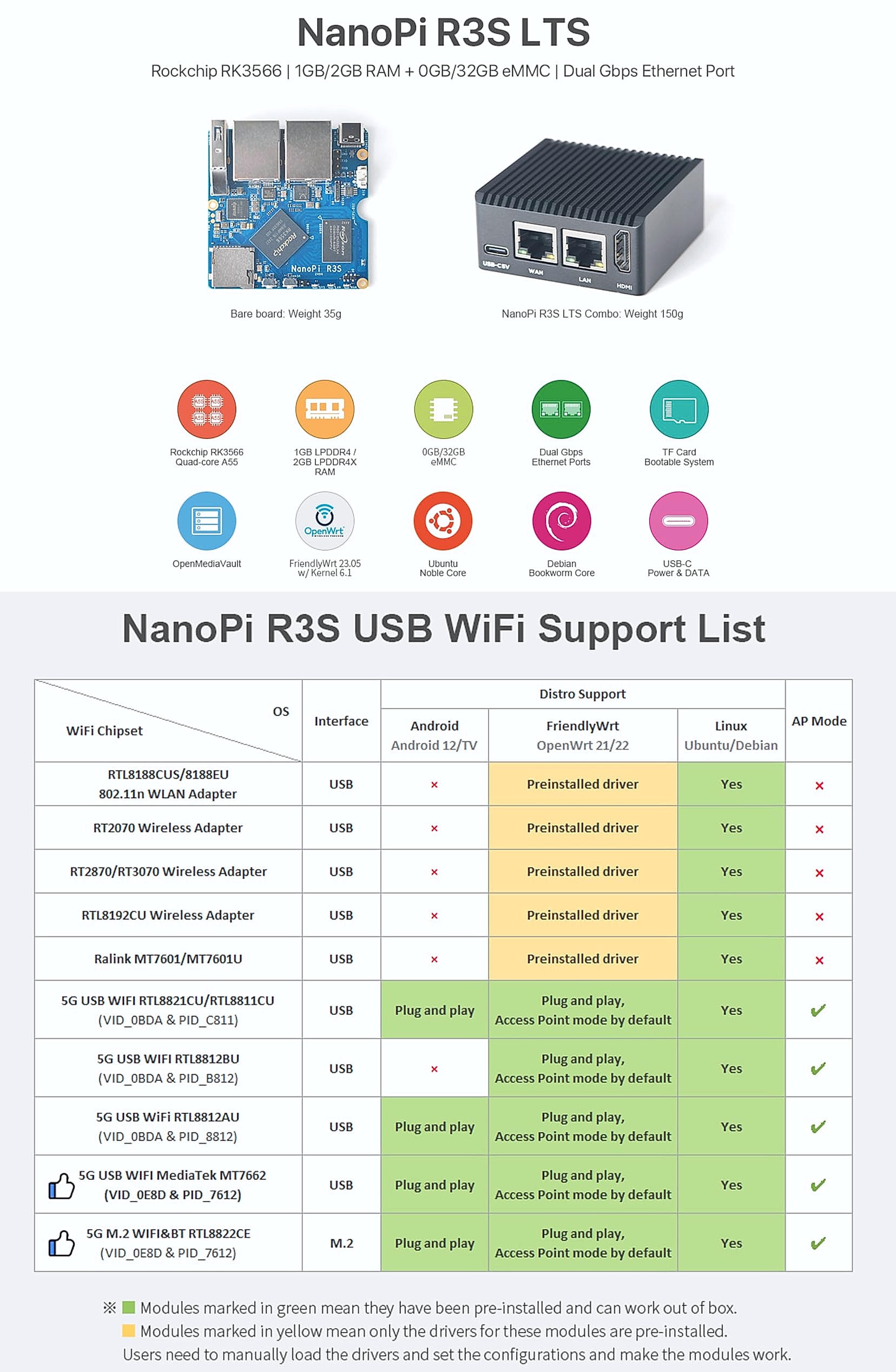

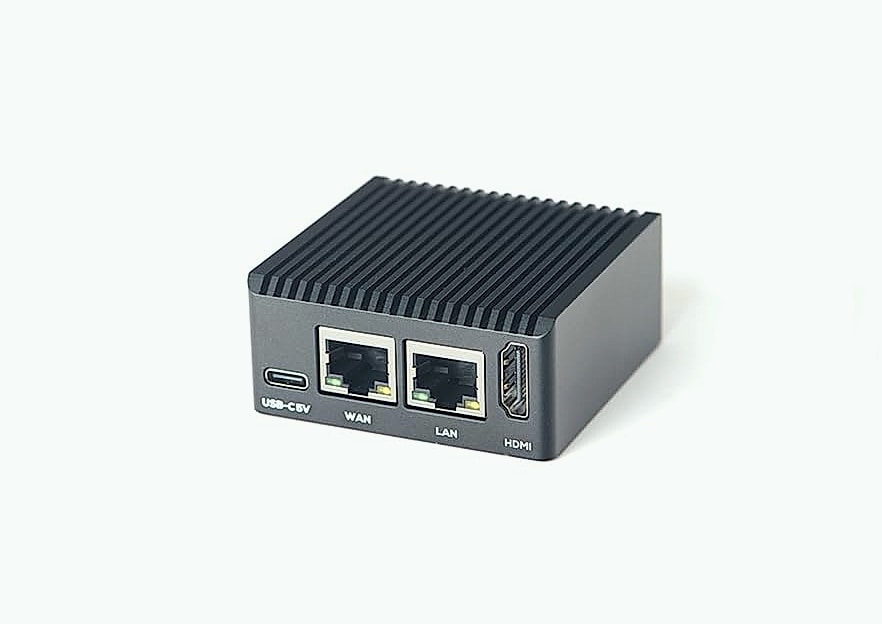

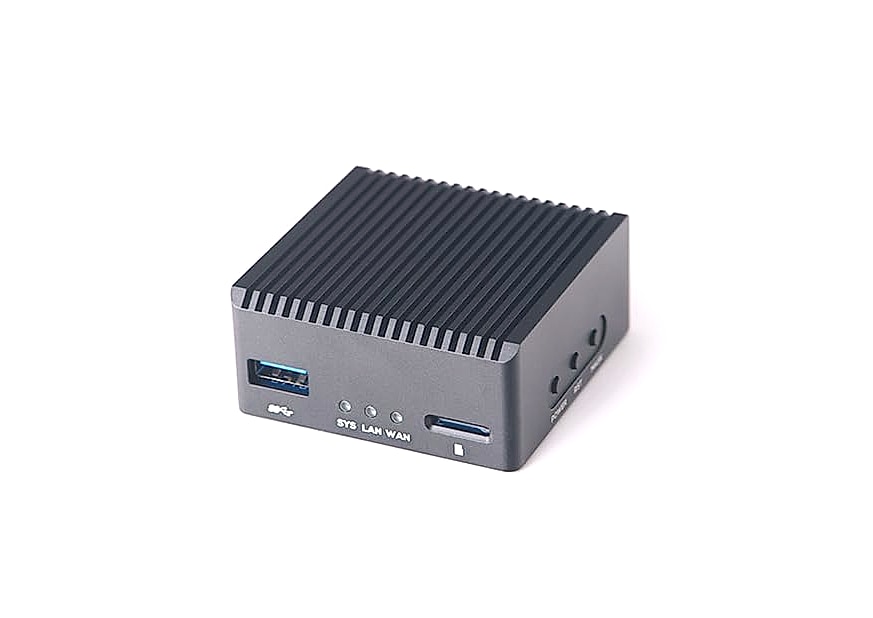

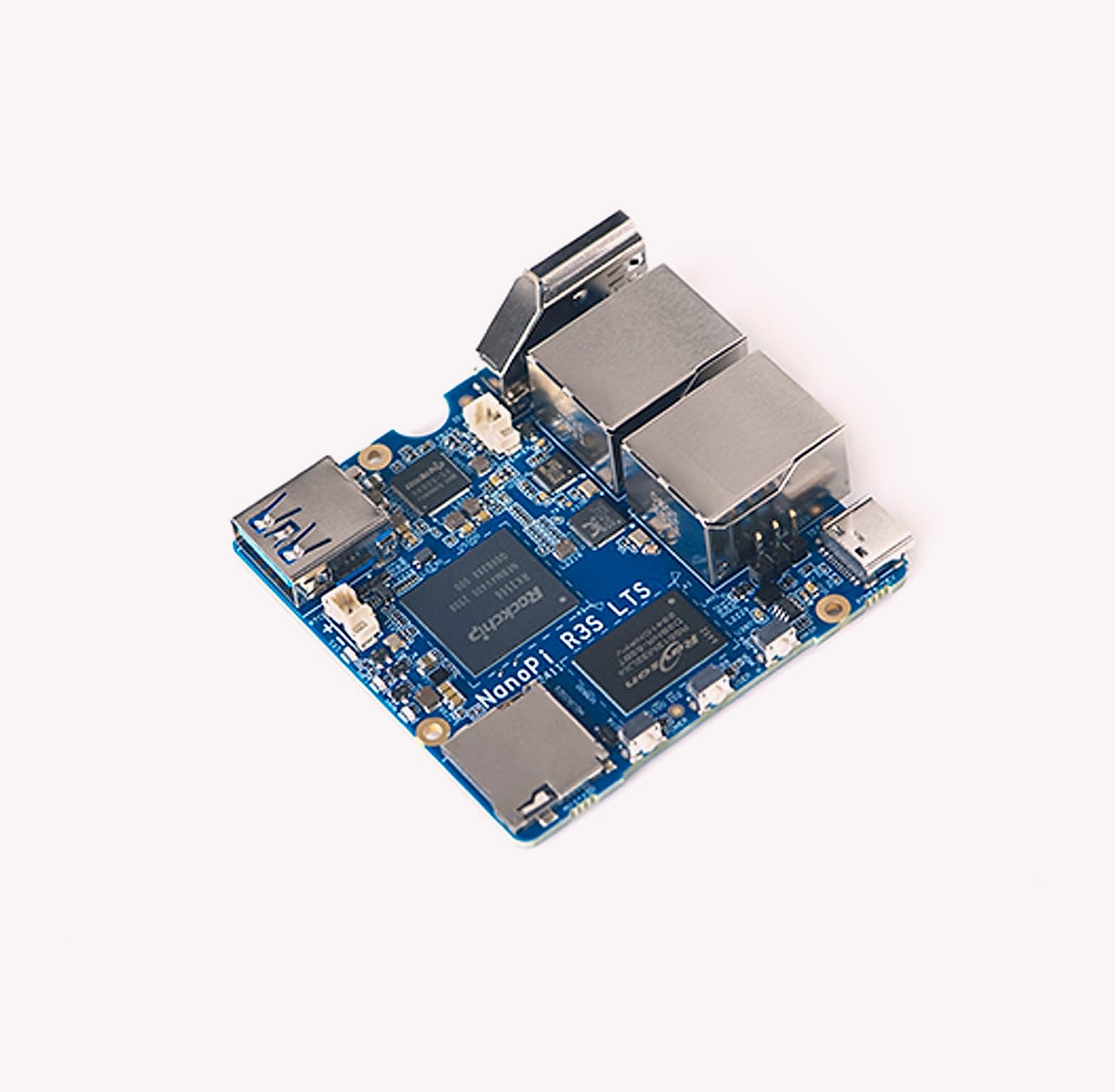

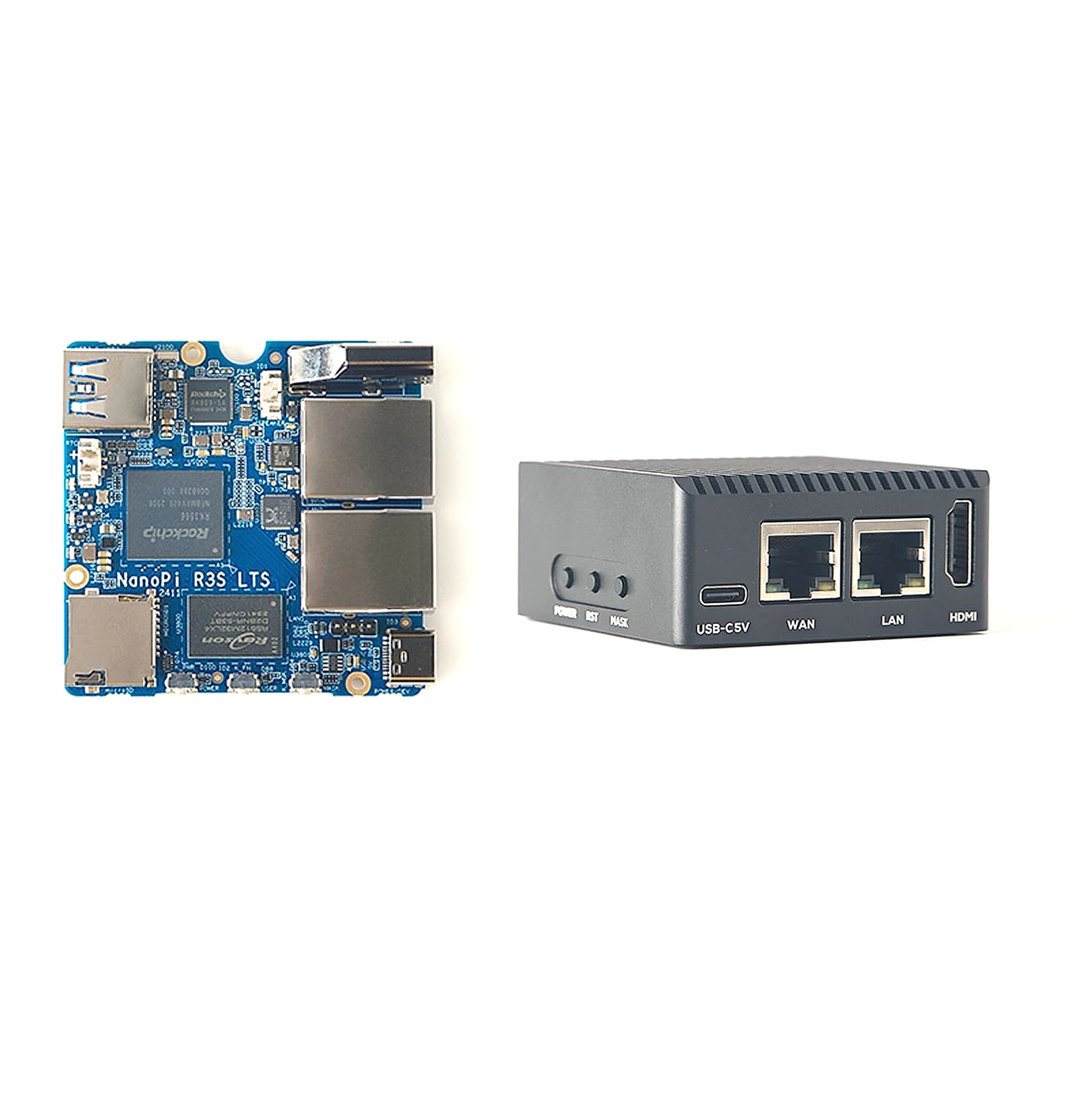

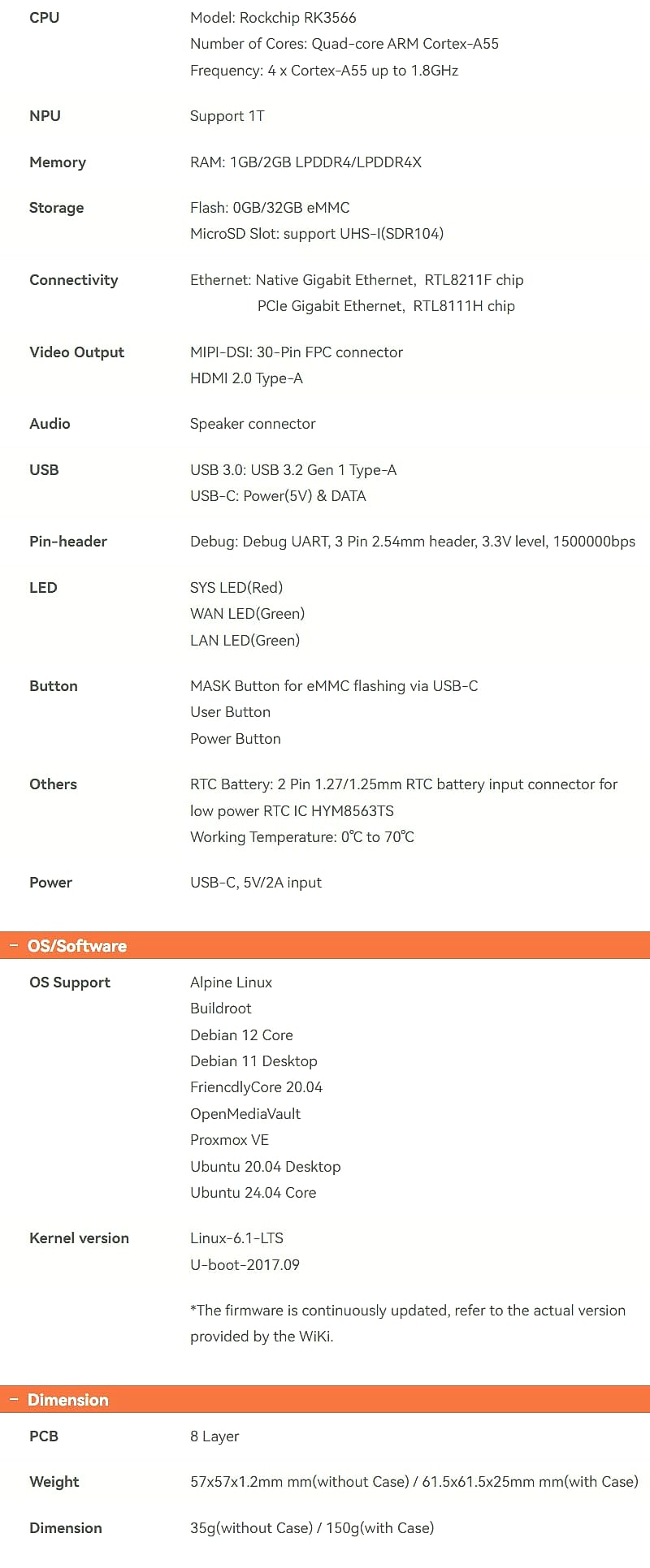

The NanoPi R3S LTS is a compact router and IoT gateway built around the Rockchip RK3566 quad-core processor. It comes with your choice of 1GB or 2GB LPDDR4X RAM and optional 32GB eMMC storage, making it flexible for different workloads. The device includes an integrated 1Tops NPU for accelerated processing tasks. At just 62x62x25mm and weighing 150 grams, this mini router fits easily into tight spaces while packing serious connectivity options. Connectivity is where this device really shines. You get dual Gigabit Ethernet ports, one native and one via PCIe, plus USB 3.0 Type-A, MicroSD card slot, and USB-C power input. There's also a debug serial port and support for HDMI 2.0 video output along with a 30-pin FPC connector for optional displays. It supports USB WiFi modules if you need wireless capabilities beyond wired connections. Software support is extensive. The device runs OpenWrt out of the box but also supports Linux, Debian, Ubuntu, Alpine Linux, Buildroot, U-boot, and OpenMediaVault. Docker CE compatibility makes containerized applications straightforward. Whether you're building a home network gateway, setting up NAS storage, running IoT applications, or deploying Docker containers in a small office, this router adapts to your needs. Development-friendly with full source code access, it's designed for both users who want plug-and-play functionality and developers wanting to compile custom firmware. Power requirements are minimal at just 5V/2A through the USB-C connector.
