Item Description

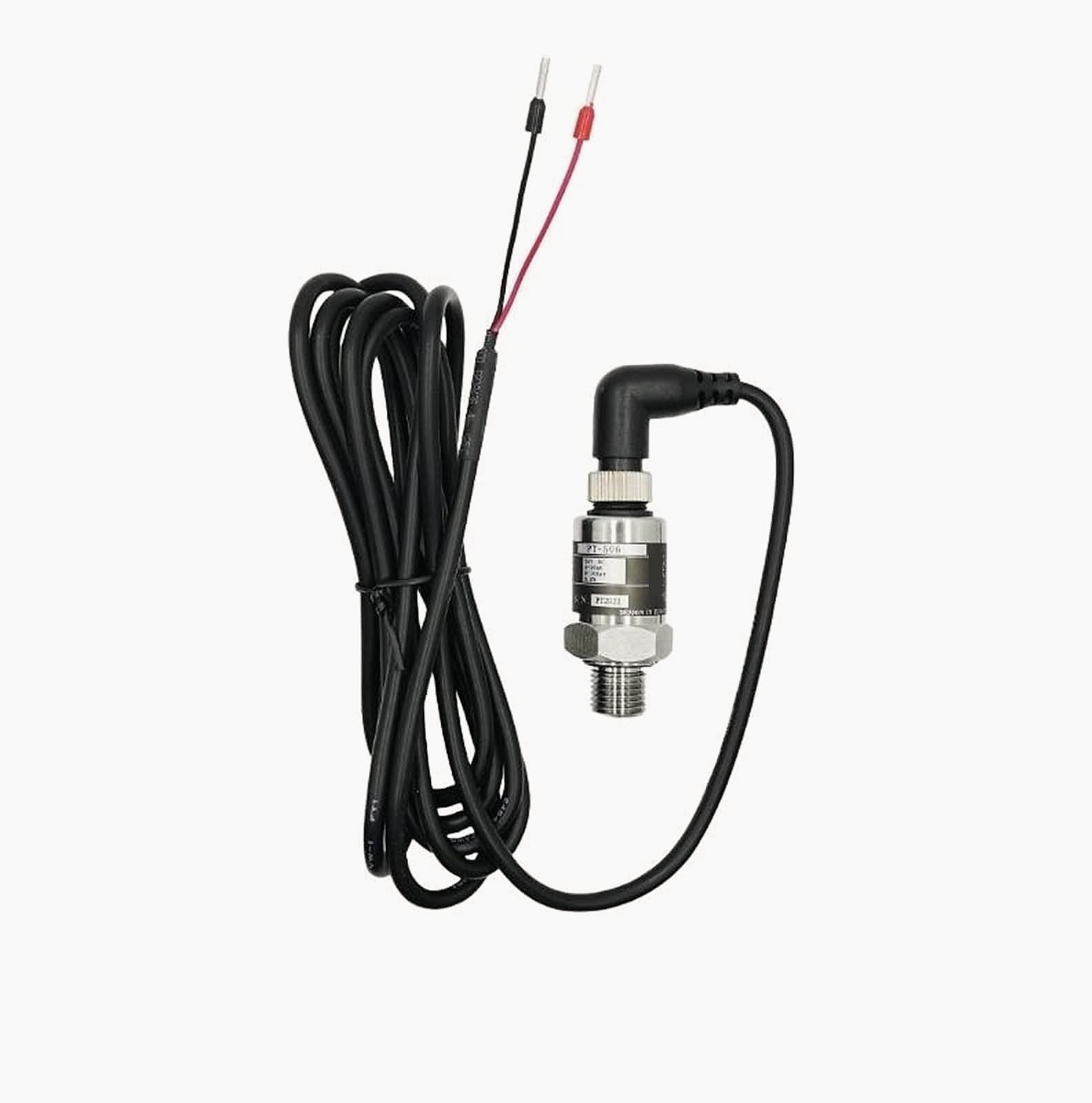

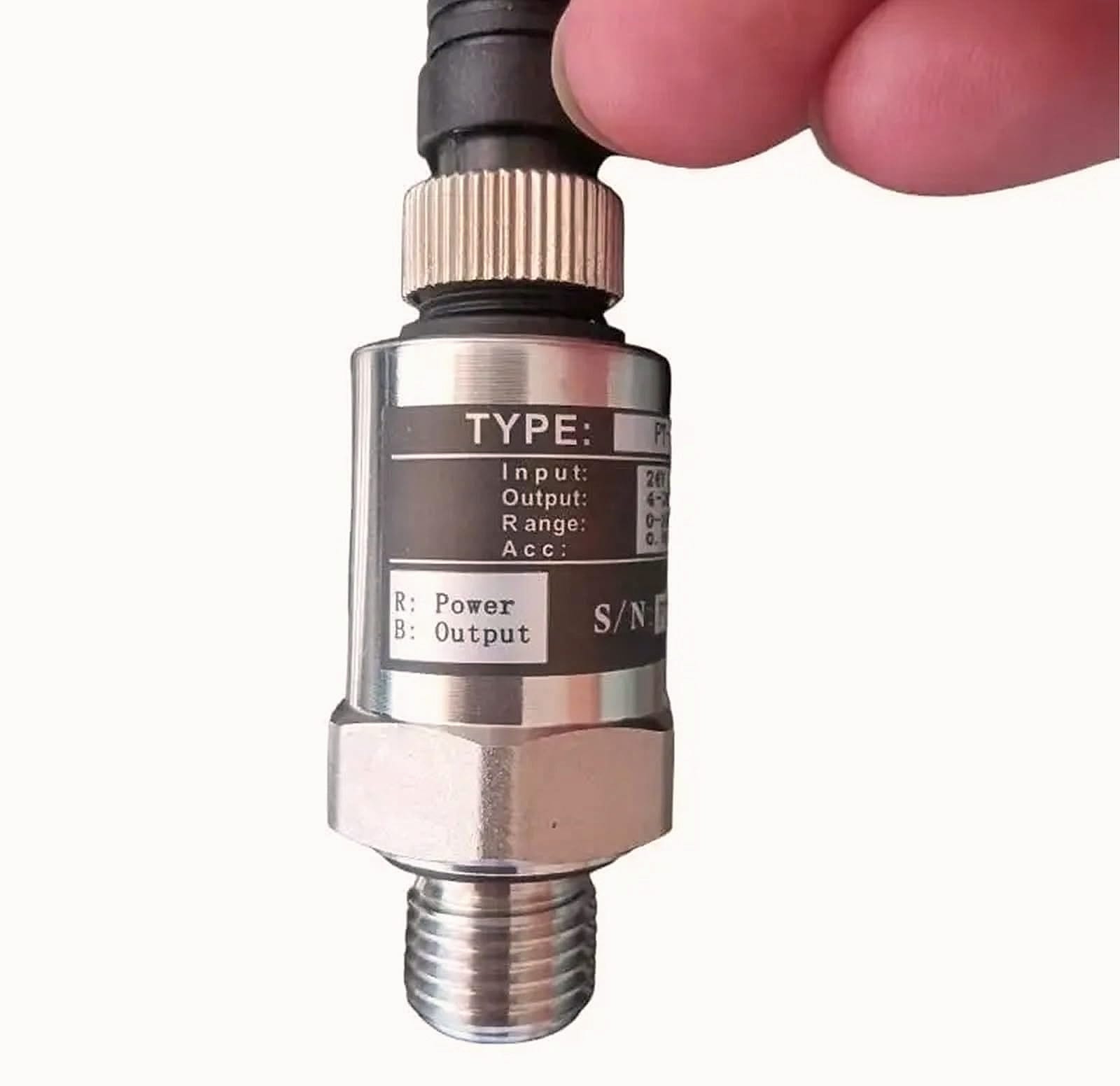

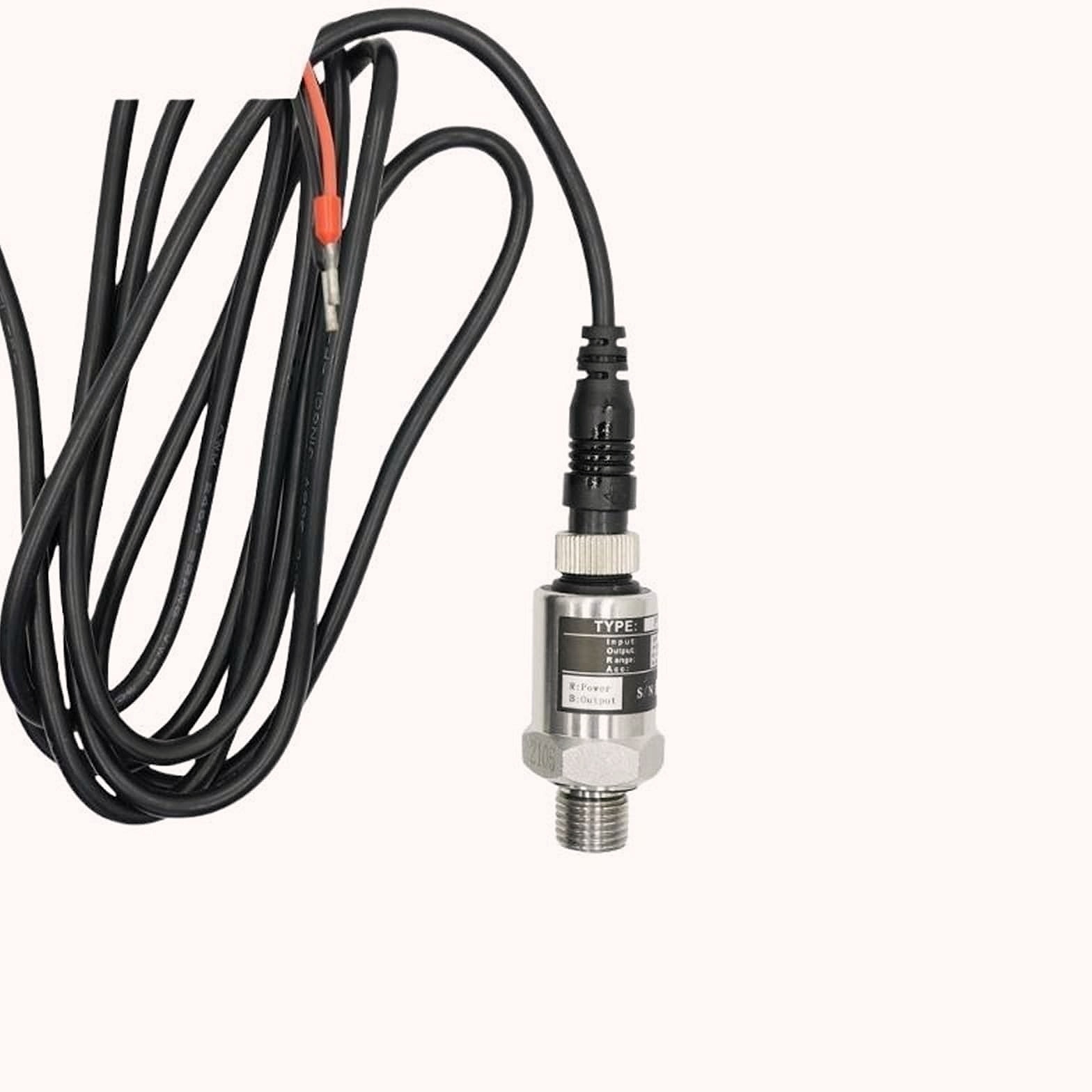

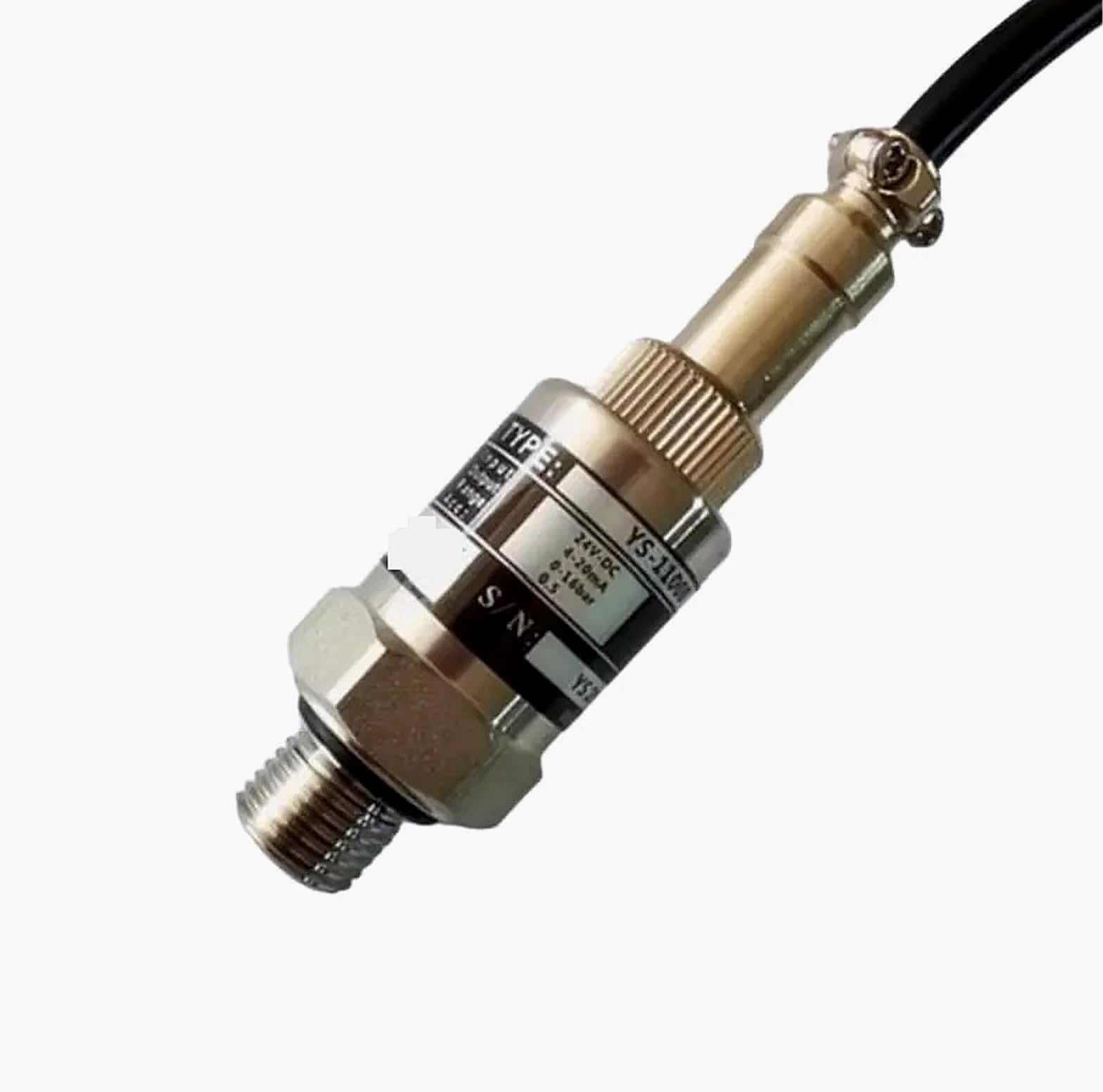

This 24V pressure transducer handles water, oil, and air monitoring with solid accuracy and durability. It delivers ±0.5% full-scale precision, making it reliable for industrial automation, hydraulic systems, air compressors, and liquid level detection. The stainless steel body pairs with an O-ring seal and built-in gasket for IP67 waterproof and dustproof protection, so it holds up in tough environments without leaking or corroding. You get the transducer with either straight or elbow threading, depending on your setup. It connects via G1/4 port (13mm diameter) and outputs a standard 4-20mA signal, making integration straightforward with most monitoring systems and pump controllers. The cable runs 2 meters long with 22AWG tinned shielded wire that resists electromagnetic interference. Power input is 24VDC, with a tolerance range of 10-36VDC if your system runs slightly different voltage. Operating temperature stays steady from -40°C to +85°C. One smart design feature is the anti-mistake plug slot that prevents accidental reverse insertion and sensor damage during installation. Choose your pressure range from three options: 0-1.0MPa, 0-1.6MPa, or 0-2.5MPa depending on your application. The package includes one unit ready to connect.
