Item Description

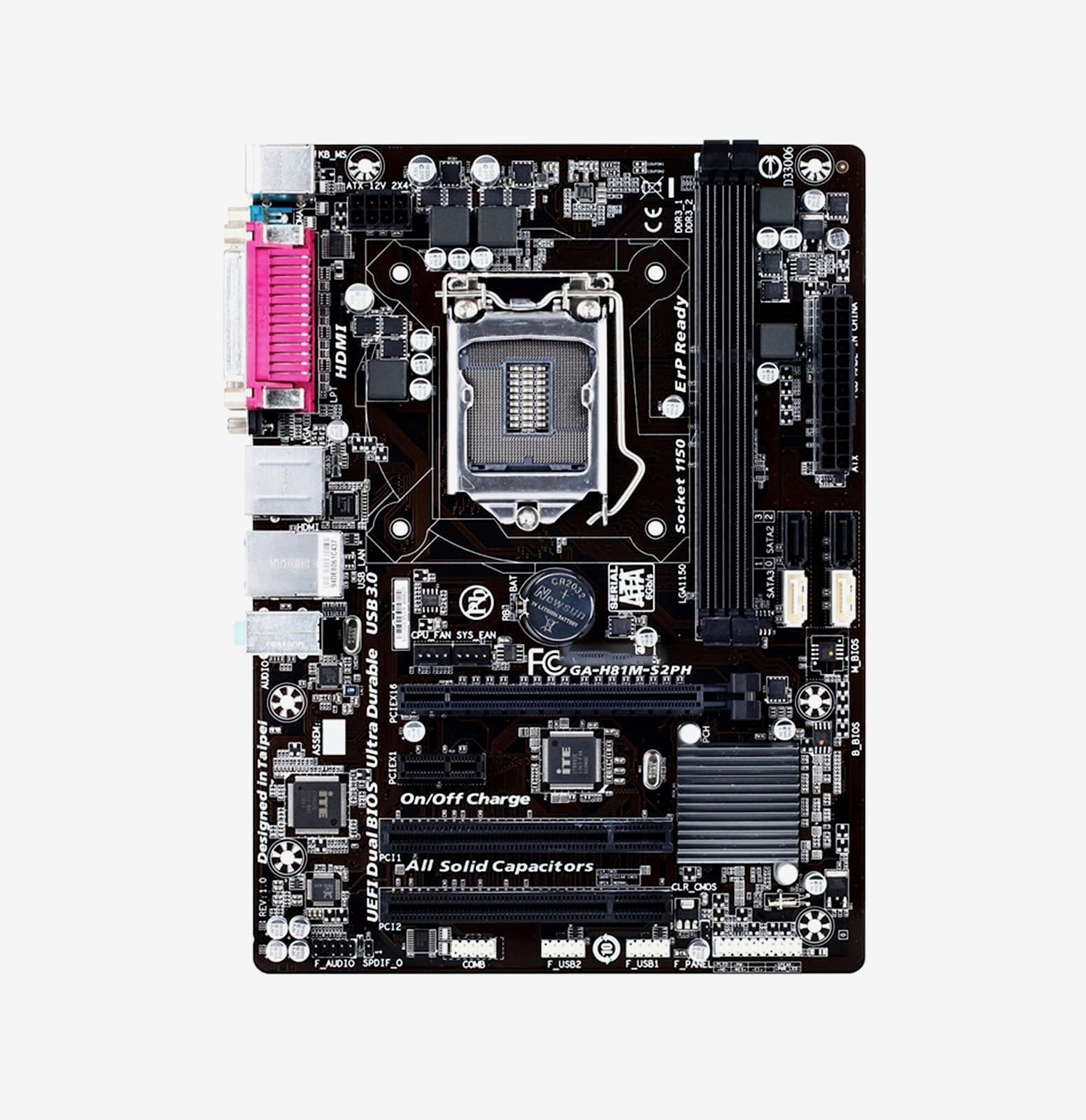

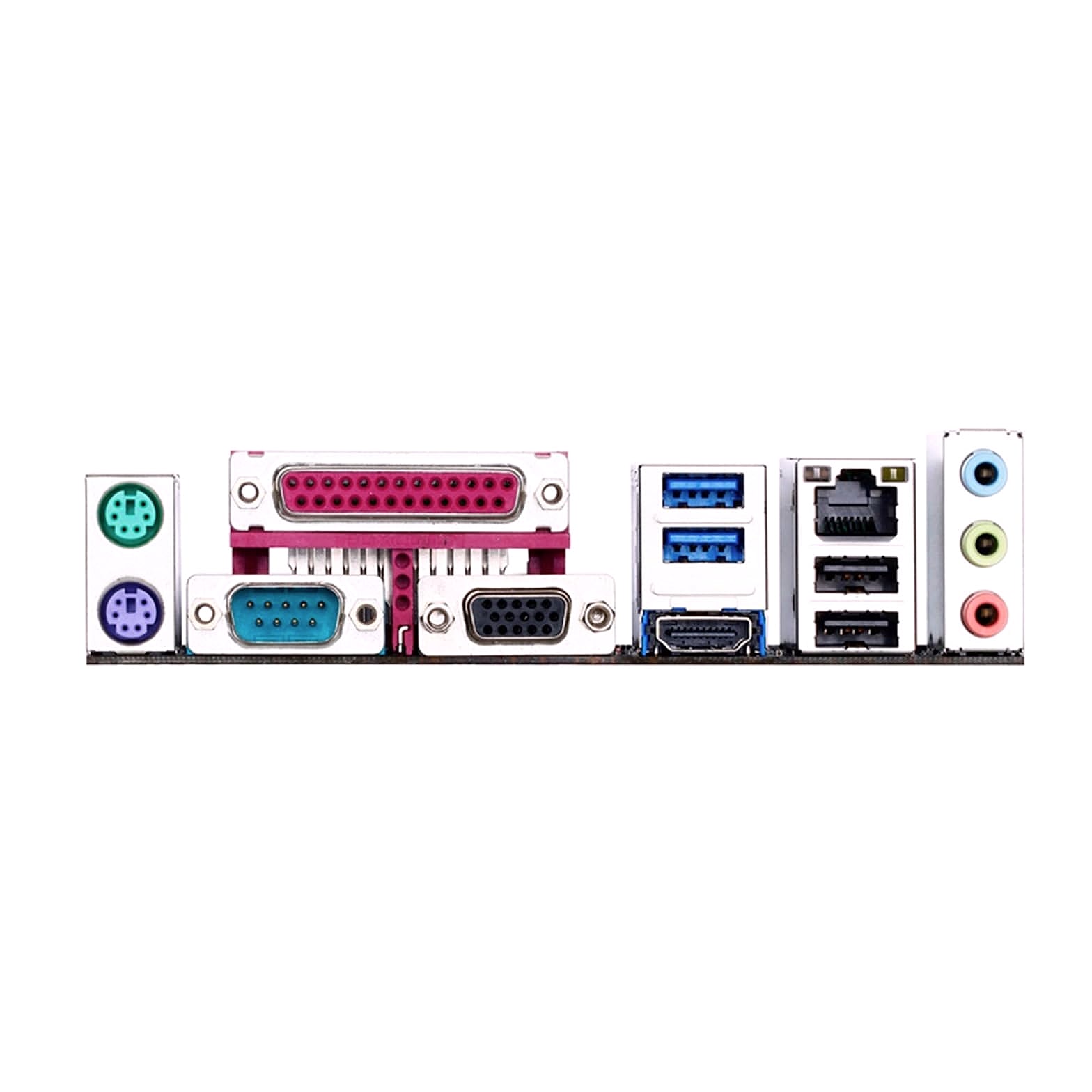

This GIGABYTE GA-H81M-S2PH motherboard is a solid choice for building or upgrading a desktop system around Intel's fourth-generation processors. Built on the Intel H81 chipset, it supports a wide range of CPUs including Celeron, Pentium, Core i3, Core i5, Core i7, and Xeon processors in the LGA 1150 socket. The board maxes out at 16GB of DDR3 memory running at 1600MHz or 1333MHz in dual-channel mode, giving you plenty of headroom for multitasking and office work. Connectivity is well-rounded for a budget-friendly board. You get dual SATA 6Gb/s ports for modern storage devices plus two older SATA 3Gb/s connections for legacy drives. Video output comes via HDMI and a VGA D-Sub port, so you can hook up multiple displays if needed. USB connectivity includes two USB 3.0 ports on the rear panel with additional USB 2.0 headers for front panel expansion. The network connection is handled by a single RJ45 Ethernet port. Expansion options include one PCI Express 2.0 x16 slot, one PCI Express x1 slot, and two legacy PCI slots. RAID support is built in for those wanting redundancy or performance improvements with multiple drives. Housed in a Micro ATX form factor measuring 9.6 by 7.09 inches, this board fits nicely in smaller cases while maintaining enough slots for typical builds. The onboard audio and front panel headers round out the feature set for a straightforward system assembly experience.
